A good PCB layout for the TPS92830QPWRQ1 should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure that the thermal pad is connected to a solid ground plane. Use a 2-3 layer PCB with a solid ground plane on the bottom layer to reduce thermal resistance. Keep the device away from high-current carrying traces and decoupling capacitors.
When selecting an inductor for the TPS92830QPWRQ1, consider the inductor's saturation current, DC resistance, and self-resonant frequency. Choose an inductor with a saturation current rating higher than the peak current of the converter. The DC resistance should be low to minimize power loss. The self-resonant frequency should be higher than the switching frequency of the converter.
For the TPS92830QPWRQ1, use a low-ESR ceramic capacitor (X5R or X7R dielectric) with a value between 4.7uF to 10uF. This type of capacitor provides low equivalent series resistance (ESR) and is suitable for high-frequency switching converters.
To ensure the TPS92830QPWRQ1 operates within its safe operating area (SOA), monitor the device's junction temperature, input voltage, and output current. Use the thermal monitoring pin (TMP) to monitor the junction temperature. Keep the input voltage within the recommended range, and ensure the output current does not exceed the maximum rating.
The EN (enable) pin on the TPS92830QPWRQ1 is used to enable or disable the converter. When the EN pin is high, the converter is enabled, and when it's low, the converter is disabled. Use the EN pin to implement power sequencing, shutdown, or low-power modes in your system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS92830QPWRQ1 Overview

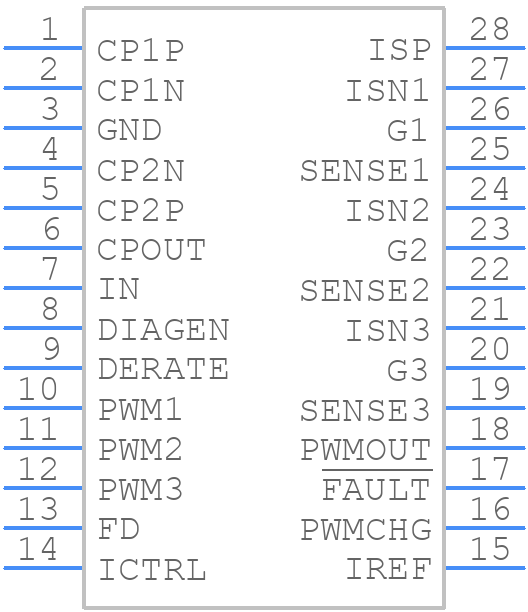

Use the download button to access the TPS92830QPWRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
