Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. TI provides guidelines for capacitor selection in the datasheet, but it's also recommended to consult with capacitor manufacturers and perform simulations to ensure the chosen capacitors meet the requirements.
The TPS929240AQDCPRQ1 has an operating temperature range of -40°C to 150°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
The TPS929240AQDCPRQ1 has a specific power-up and power-down sequence that must be followed to ensure proper operation. This includes ramping up the input voltage slowly, ensuring the enable pin is high before applying input voltage, and following the recommended power-down sequence to prevent damage to the device.
TI recommends using high-precision test equipment, such as oscilloscopes, signal generators, and multimeters, to characterize the device's performance. It's also recommended to use a thermal camera to monitor the device's temperature during operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS929240AQDCPRQ1 Overview

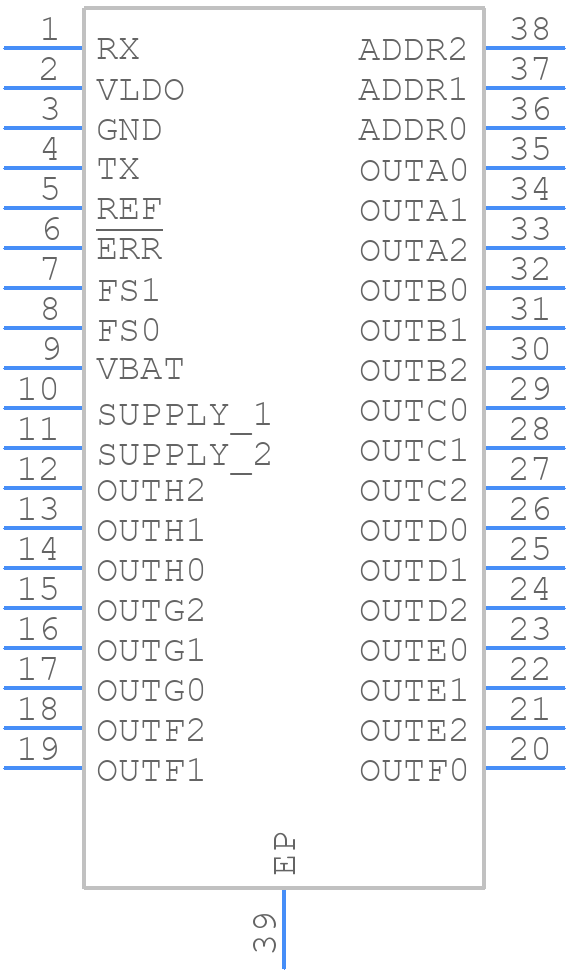

Use the download button to access the TPS929240AQDCPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS92,
or try a keyword search, such as Display Drivers
