A good PCB layout for the TPSM5601R5HSRDAR should include a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 10uF) placed close to the device. Additionally, the input and output capacitors should be placed close to the device and connected to the respective pins using short traces.
To ensure the TPSM5601R5HSRDAR operates within its recommended operating conditions, make sure to provide a stable input voltage within the specified range (4.5V to 5.5V), keep the ambient temperature within the specified range (-40°C to 125°C), and avoid exceeding the maximum current rating (6A).
The TPSM5601R5HSRDAR has a thermal pad that must be connected to a solid ground plane to ensure proper heat dissipation. A thermal via or a thermal pad on the PCB can be used to dissipate heat. Additionally, ensure good airflow around the device and avoid blocking the airflow with components or obstacles.
Yes, the TPSM5601R5HSRDAR is suitable for high-reliability applications. It is qualified to the Automotive AEC-Q100 standard, which ensures it meets the reliability requirements for automotive applications. The device also has a high MTBF (Mean Time Between Failures) rating, making it suitable for high-reliability applications.
To troubleshoot issues with the TPSM5601R5HSRDAR, start by checking the input voltage, output voltage, and current. Verify that the device is operating within its recommended operating conditions. Common failure modes include overheating, overvoltage, and overcurrent. Check for signs of physical damage, such as cracks or burn marks, and ensure the device is properly soldered to the PCB.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM5601R5HSRDAR Overview

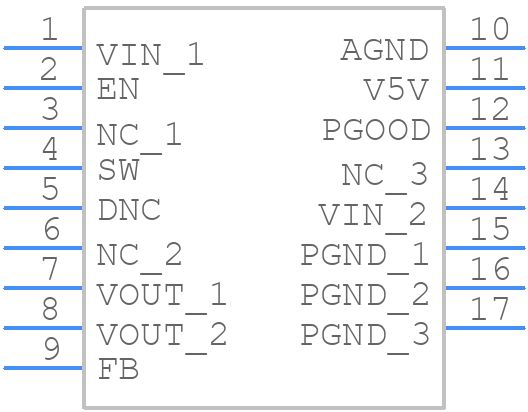

Use the download button to access the TPSM5601R5HSRDAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM5,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
