Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
To ensure stable and accurate output voltage, make sure to use a high-quality output capacitor with low ESR, follow the recommended output capacitor values, and keep the output voltage sense lines short and away from noise sources. Additionally, ensure the input voltage is stable and within the recommended range.
Although the datasheet specifies a maximum input voltage of 6.5V, it's recommended to keep the input voltage below 6V to ensure reliable operation and prevent damage to the IC. Exceeding the maximum input voltage can lead to reduced performance, increased power consumption, or even IC failure.
The TPSM560R6RDAR is rated for operation up to 125°C, but it's essential to consider the derating curves and thermal management when operating in high-temperature environments. Ensure proper heat sinking, and consider using thermal interface materials to reduce thermal resistance.
To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for proper PCB layout, component selection, and soldering quality. Use an oscilloscope to monitor the output voltage and input voltage ripple. Consult the datasheet and application notes for guidance on troubleshooting specific issues.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM560R6RDAR Overview

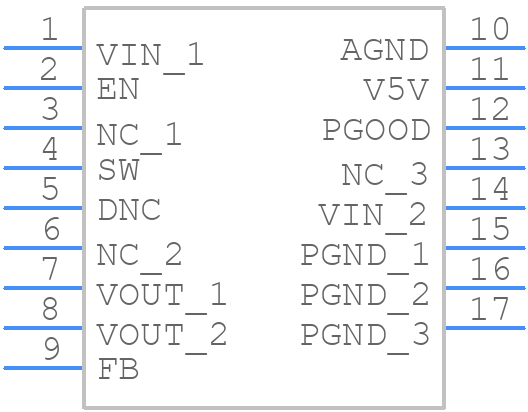

Use the download button to access the TPSM560R6RDAR schematic symbol, PCB footprint, and 3D model.
