TPSM63603RDHR - Texas Instruments

Description: Power Management Modules High-density, 3-V to 36-V input, 1-V to 16-V output, 3-A power module

Download TPSM63603RDHR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

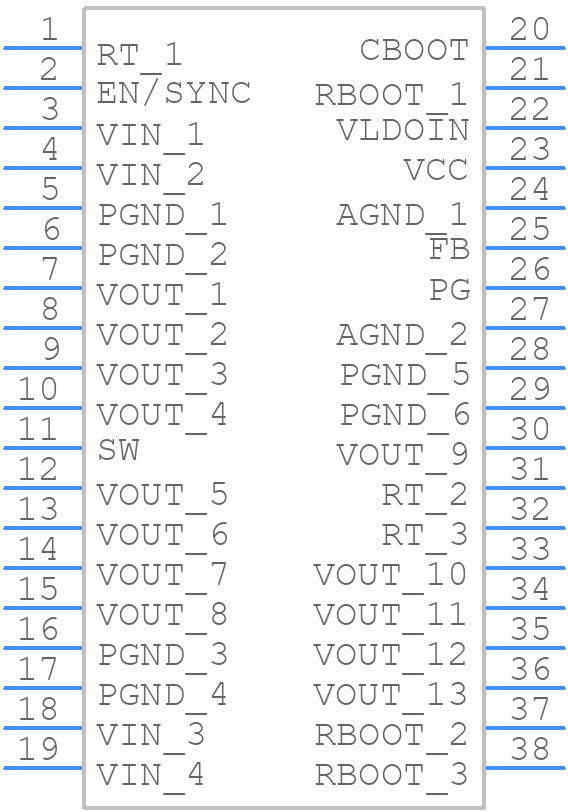

Symbol
TPSM63603RDHR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPSM63603RDHR - Texas Instruments PCB footprint - Other - Other - RDH0030A
click to zoom
3D Models
TPSM63603RDHR - Texas Instruments - 3D model - Other - RDH0030A
click to zoom

TPSM63603RDHR Details

  • Manufacturer Part Number:

    TPSM63603RDHR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    3 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PBCC-N30

  • JESD-609 Code:

    e4

  • Length:

    6 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    16 V

  • Output Voltage-Min:

    1 V

  • Output Voltage-Nom:

    3.3 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    BCC

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.9 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK-BOOST

  • Switching Frequency-Max:

    2200 kHz

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPSM63603RDHR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPSM63603RDHR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The selection of input and output capacitors for the TPSM63603RDHR depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended for the input capacitor, while a 10uF to 22uF ceramic capacitor with a voltage rating of 2.5V or higher is recommended for the output capacitor.
  • The maximum ambient temperature range for the TPSM63603RDHR is -40°C to 125°C. However, the device can operate at a junction temperature of up to 150°C.
  • To ensure the TPSM63603RDHR is stable and doesn't oscillate, it's recommended to follow the layout guidelines, use the recommended capacitors, and add a 10nF to 22nF capacitor in parallel with the output capacitor to improve stability.
  • The maximum output current of the TPSM63603RDHR is 3A. However, the device can deliver up to 4A of peak current for short durations.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPSM63603RDHR Overview

Use the download button to access the TPSM63603RDHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM6, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
