Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating to minimize voltage drops and ensure stable operation. Output capacitors should have low ESR and high capacitance to filter output voltage ripple. Consult the datasheet for specific recommendations and consider using X5R or X7R ceramic capacitors.
The TPSM63603SRDHR is rated for operation up to 85°C ambient temperature, but it's essential to consider the device's thermal characteristics, such as junction temperature (TJ) and thermal resistance (RθJA), to ensure reliable operation in your specific application.
The TPSM63603SRDHR has built-in OCP and SCP features. To implement these features, connect the OCP pin to a resistor divider network that sets the current limit, and connect the SCP pin to a capacitor that sets the short-circuit detection time. Consult the datasheet for specific implementation details and recommended component values.
The TPSM63603SRDHR is designed to operate with input voltages between 2.7V and 5.5V. Operating within this range ensures optimal performance, efficiency, and reliability. However, the device can tolerate input voltages up to 6V for short periods, but this may affect performance and reliability.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM63603SRDHR Overview

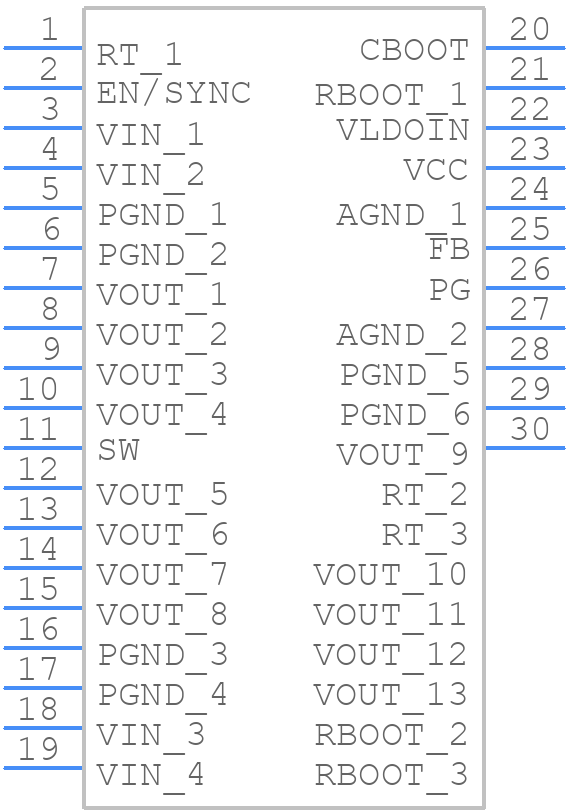

Use the download button to access the TPSM63603SRDHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM6,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
