Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce EMI and noise.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. The datasheet provides guidance on capacitor selection, but it's crucial to consider the specific application requirements and operating conditions.
The TPSM63608RDFR is rated for operation up to 85°C ambient temperature. However, it's essential to consider the device's thermal characteristics, such as junction temperature and thermal resistance, to ensure reliable operation in your specific application.
Follow the recommended power-up and power-down sequences in the datasheet to prevent damage or malfunction. Ensure that the input voltage is stable and within the recommended range before enabling the device, and provide a soft-start or ramp-up of the input voltage to prevent inrush currents.
To minimize EMI and noise, use a shielded layout, keep sensitive components away from the switching node, and use a common-mode choke or ferrite bead on the input lines. Additionally, consider using a spread-spectrum clock or frequency dithering to reduce EMI peaks.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM63608RDFR Overview

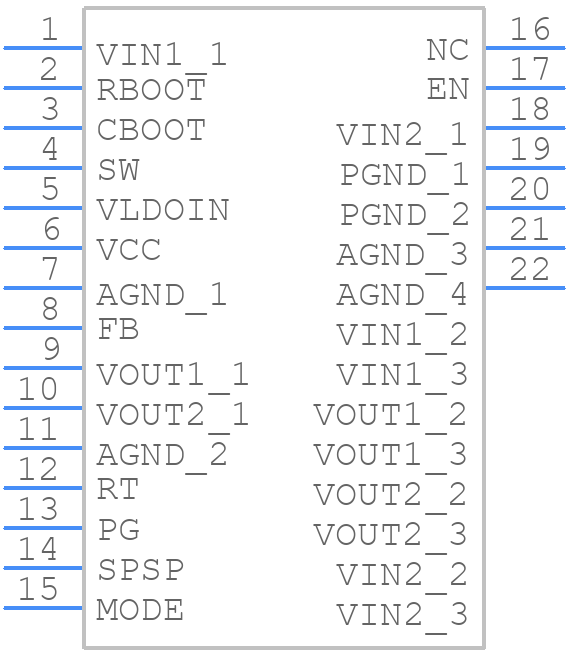

Use the download button to access the TPSM63608RDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM6,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
