Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for thermal management, such as placing thermal vias under the device, using a solid ground plane, and keeping the thermal path short and direct.
The TPSM831D31MOA has an internal voltage regulator that requires a minimum input voltage of 2.7V to function. Ensure that the input voltage is within the recommended range and that the device is properly biased during startup by following the recommended startup sequence outlined in the datasheet.
The TPSM831D31MOA is capable of delivering up to 3A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for the recommended operating conditions and thermal derating curves to ensure the device is operated within its capabilities.
The TPSM831D31MOA has built-in OVP and UVP features, but it's still important to consider external protection mechanisms, such as fuses or TVS diodes, to protect against voltage transients and faults. Additionally, ensure that the device is properly configured and biased to enable the OVP and UVP features.
The recommended input capacitor value and type depend on the specific application and operating conditions. As a general guideline, use a low-ESR ceramic capacitor with a value of 10uF to 22uF, and ensure that it is rated for the maximum input voltage and operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPSM831D31MOA Overview

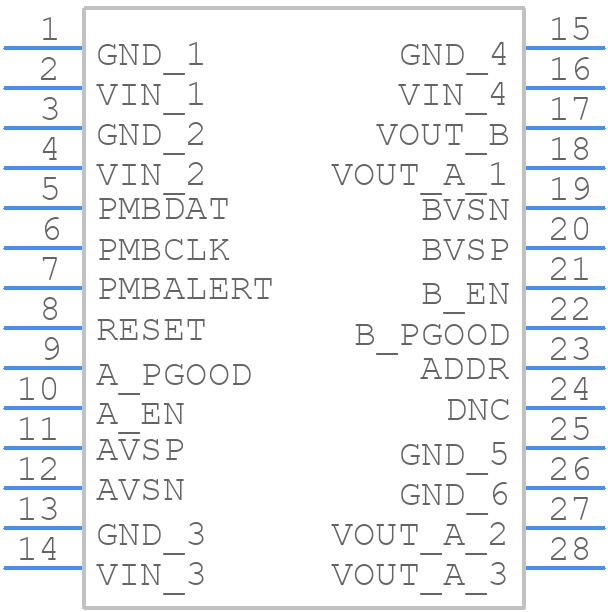

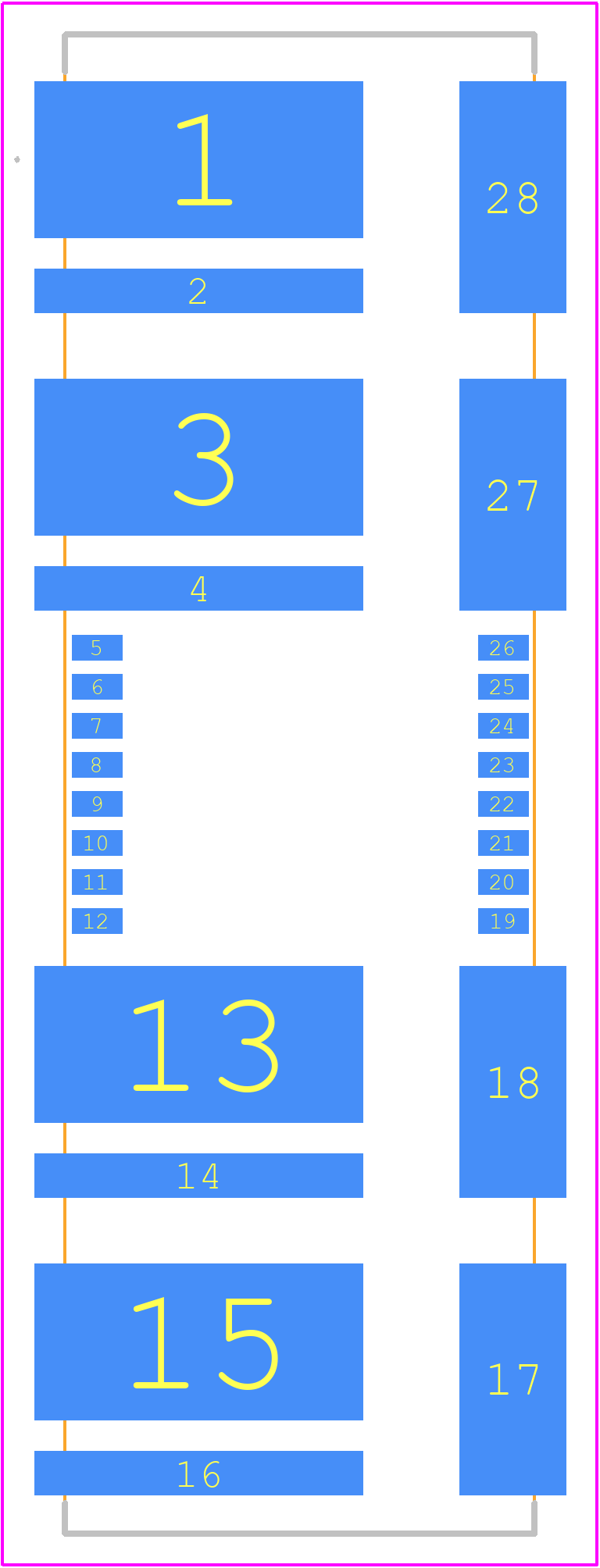

Use the download button to access the TPSM831D31MOA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPSM8,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
