- Part Number TRF2052PW
- Manufacturer Texas Instruments
- Pin Count 20
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - PW (R-PDSO-G*)
- Released Date Aug 20, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TRF2052PW Details
-
Manufacturer Part Number:
TRF2052PW
-
Part Life Cycle Code:
Obsolete
-
Package Description:
SOP-20
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
JESD-30 Code:
R-PDSO-G20
-
Length:
6.5 mm
-
Number of Terminals:
20
-
Operating Temperature-Max:
55 °C
-
Operating Temperature-Min:
-10 °C
TRF2052PW Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLAU603, which includes guidelines for component placement, routing, and grounding to minimize noise and ensure optimal performance.
-
The TRF2052PW requires a specific biasing scheme to achieve optimal linearity and gain. The recommended biasing circuit is shown in the datasheet, and it's essential to follow the recommended voltage and current levels to ensure proper operation.
-
The maximum input power that the TRF2052PW can handle without damage is not explicitly stated in the datasheet. However, according to Texas Instruments' application note SLAU603, the device can handle up to +10 dBm of input power without damage, but this may vary depending on the specific application and operating conditions.
-
Troubleshooting common issues with the TRF2052PW requires a systematic approach. Start by checking the PCB layout and component values, then verify the biasing scheme and input/output matching. Use simulation tools or measurement equipment to identify the root cause of the issue, and consult the application notes and datasheet for guidance.
-
The TRF2052PW has a maximum junction temperature of 150°C. To ensure proper heat dissipation, use a thermal pad or heat sink, and follow the recommended PCB layout guidelines to minimize thermal resistance. Additionally, ensure good airflow around the device and avoid blocking the thermal pads.
Trust Checks
Community Provided
System Verified
Community Approved
TRF2052PW Overview

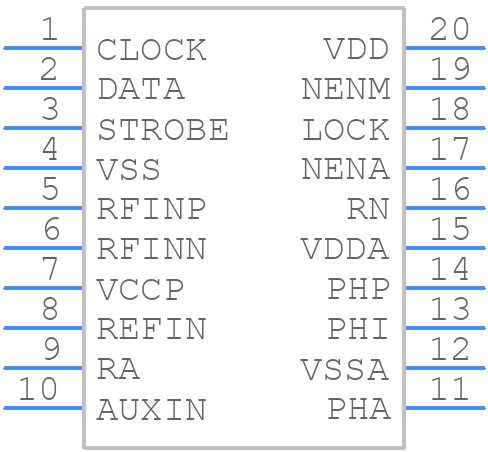

Use the download button to access the TRF2052PW schematic symbol, PCB footprint, and 3D model.
