FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Telecom IC Type:
TELECOM CIRCUIT
Temperature Grade:
INDUSTRIAL
Terminal Finish:
NICKEL PALLADIUM GOLD
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
12 mm
TRF2443IPFP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TRF2443IPFP datasheet, which includes guidelines for component placement, trace routing, and grounding. Additionally, the TI website offers a PCB layout checklist and a layout guide for high-frequency designs.
To ensure reliable operation at high temperatures, follow the recommended operating conditions and thermal management guidelines in the datasheet. Use a heat sink or thermal pad to dissipate heat, and consider using a thermal interface material to improve heat transfer. Also, ensure that the device is operated within the specified junction temperature range (TJ) of -40°C to 150°C.
When selecting input/output termination resistors, consider the signal frequency, impedance, and amplitude. The datasheet provides guidelines for selecting the correct termination resistors, including the recommended values for 50-ohm and 75-ohm systems. Additionally, consider using a termination network or a resistive divider to achieve the desired impedance matching.
To minimize EMI and RFI, follow good design practices such as using a solid ground plane, keeping signal traces short and away from the edge of the board, and using shielding or filtering components. The TRF2443IPFP datasheet provides guidelines for EMI and RFI reduction, including the use of a common-mode choke and a shielded enclosure.
The TRF2443IPFP is designed to operate with signal amplitudes up to 2.5 Vpp and frequencies up to 2.5 GHz. However, the device's performance may degrade at higher frequencies or amplitudes. Consult the datasheet for specific limitations and guidelines for operating the device at the desired frequency and amplitude.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TRF2443IPFP Overview

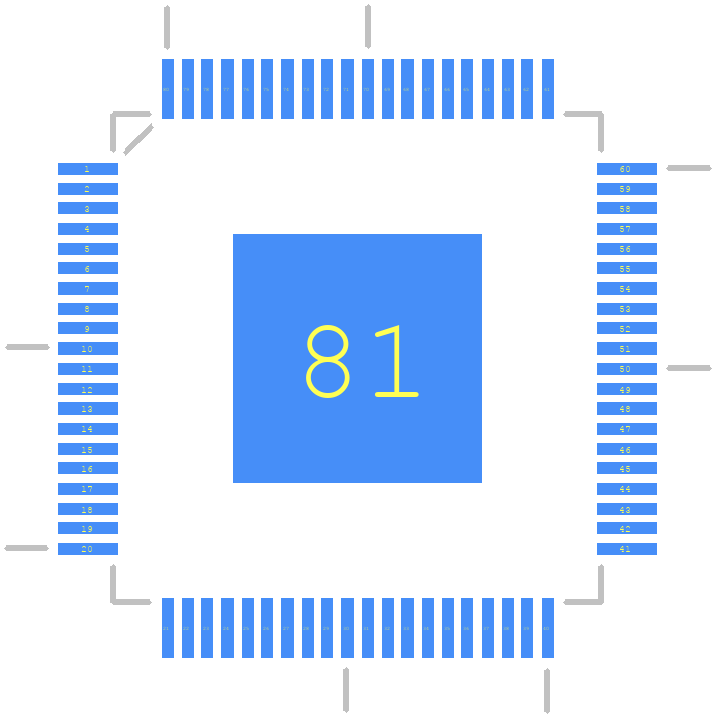

Use the download button to access the TRF2443IPFP schematic symbol, PCB footprint, and 3D model.
