Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good RF design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance.
The input and output impedance matching networks depend on the specific application and frequency range. TI provides a matching network calculator tool to help designers choose the correct components. Additionally, consulting the datasheet and application notes can provide guidance on impedance matching.
The maximum power handling capability is not explicitly stated in the datasheet. However, according to TI's documentation, the device is designed to handle up to 30 dBm (1W) of output power. It's essential to ensure that the device is operated within its recommended operating conditions to avoid damage or degradation.
To optimize the TRF371109IRGZR for low power consumption, designers can use techniques such as reducing the supply voltage, using a lower frequency, and optimizing the biasing conditions. Additionally, TI provides power-saving modes and shutdown functionality to reduce power consumption when the device is not in use.
The TRF371109IRGZR is a high-power device that requires proper thermal management to ensure reliable operation. Designers should ensure good heat sinking, use thermal vias, and follow TI's recommended thermal design guidelines to keep the device within its recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF371109IRGZR Overview

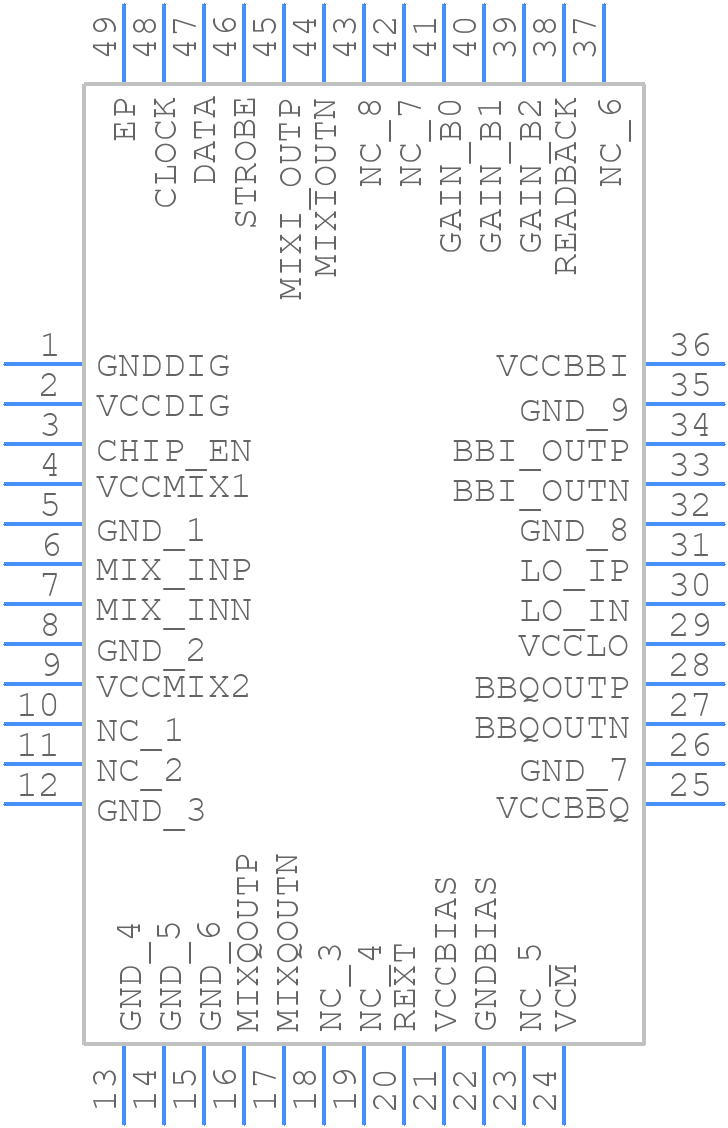

Use the download button to access the TRF371109IRGZR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37,
or try a keyword search, such as Cellular Telephone Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
