TRF3722IRGZT - Texas Instruments

Description: 400-MHz to 4.2-GHz Quadrature Modulator with Integrated Wideband PLL/VCO

Download TRF3722IRGZT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

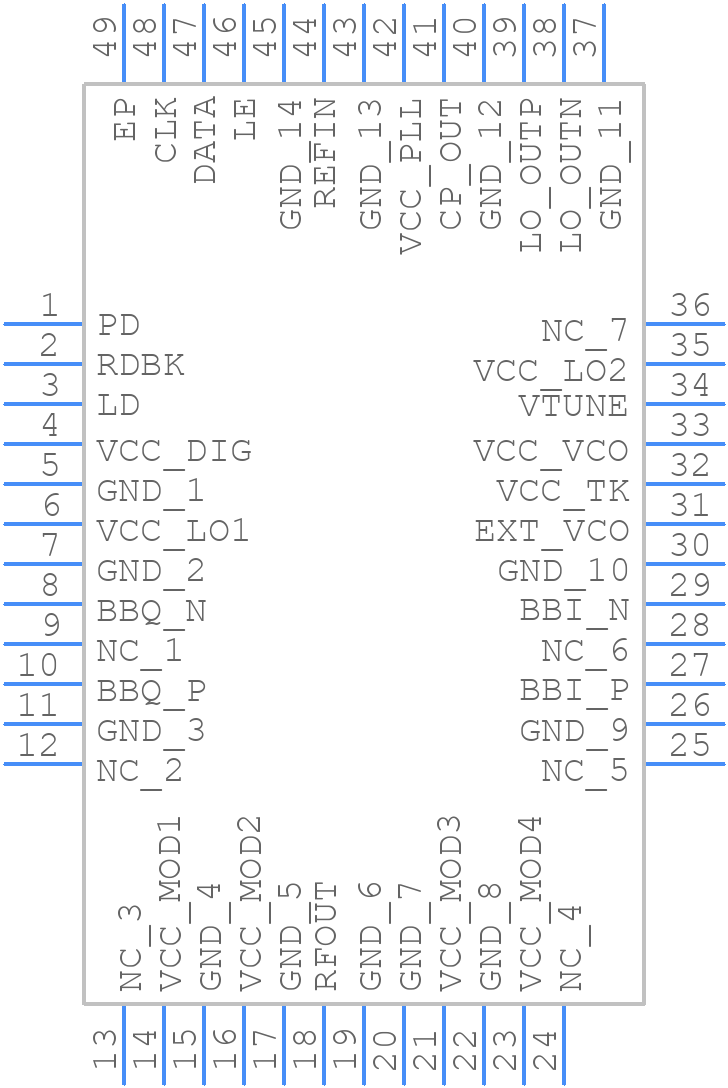

TRF3722IRGZT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF3722IRGZT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGZ0048A 2021
click to zoom
3D Models
TRF3722IRGZT - Texas Instruments - 3D model - Quad Flat No-Lead - RGZ0048A 2021
click to zoom

TRF3722IRGZT Details

  • Manufacturer Part Number:

    TRF3722IRGZT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • JESD-609 Code:

    e4

  • Modulation Technique:

    I/Q

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    48

  • Operating Frequency-Max:

    4200 MHz

  • Operating Frequency-Min:

    400 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    LCC48,.28SQ,20

  • RF/Microwave Device Type:

    MODULATOR

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • VSWR-Max:

    3.01

TRF3722IRGZT Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the RF signal traces short and away from the digital signal traces. Use a common mode filter or a pi-filter to reduce EMI.
  • Use the TI's WEBENCH Filter Designer tool to optimize the component values for the desired frequency band. The tool provides a suggested component list and a PCB layout guide.
  • The TRF3722IRGZT can handle up to 2W of input power. However, the actual power handling capability depends on the specific application and the PCB design.
  • Use a high-quality input matching network to reduce the noise figure. Also, ensure that the PCB design is optimized for minimal noise coupling and that the power supply is well-regulated.
  • Yes, the TRF3722IRGZT can be used in a switching power amplifier application. However, ensure that the device is properly biased and that the PCB design is optimized for high-frequency switching.
