TRF37C75IDSGT - Texas Instruments

Description: TEXAS INSTRUMENTS - TRF37C75IDSGT - RF Amplifier IC, 18 dB Gain / 3.5 dB Noise, 40 MHz to 4 GHz, 4.5 V to 5.25 V supply, WSON-8

Download TRF37C75IDSGT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

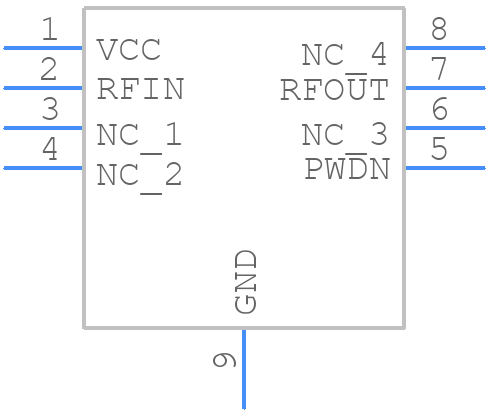

TRF37C75IDSGT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF37C75IDSGT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSG (S-PWSON-N8)
click to zoom
3D Models
TRF37C75IDSGT - Texas Instruments - 3D model - Small Outline No-lead - DSG (S-PWSON-N8)
click to zoom

TRF37C75IDSGT Details

  • Manufacturer Part Number:

    TRF37C75IDSGT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Characteristic Impedance:

    50 Ω

  • Construction:

    COMPONENT

  • Gain:

    18 dB

  • Input Power-Max (CW):

    10 dBm

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Frequency-Max:

    4000 MHz

  • Operating Frequency-Min:

    40 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Power Supplies:

    5 V

  • RF/Microwave Device Type:

    WIDE BAND LOW POWER

  • Supply Current-Max:

    85 mA

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

TRF37C75IDSGT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines.
  • The TRF37C75IDSGT requires a bias voltage of 3.3V to 5V, and the recommended bias current is 10mA to 20mA. Ensure that the bias voltage is stable and noise-free, and that the bias current is within the recommended range.
  • The TRF37C75IDSGT has an operating temperature range of -40°C to 85°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and longevity.
  • The TRF37C75IDSGT has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures, such as using an ESD wrist strap or mat, and storing the device in an ESD-safe environment.
  • The TRF37C75IDSGT has a recommended input impedance of 50 ohms and an output impedance of 50 ohms. Ensure that the input and output signals are properly matched to these impedances to achieve optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF37C75IDSGT Overview

Use the download button to access the TRF37C75IDSGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF37, or try a keyword search, such as RF/Microwave Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
