TRF7960ARHBR - Texas Instruments

Description: RFID Transponders Mult-Proto Fully Int RFID Writer/Reader

Download TRF7960ARHBR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

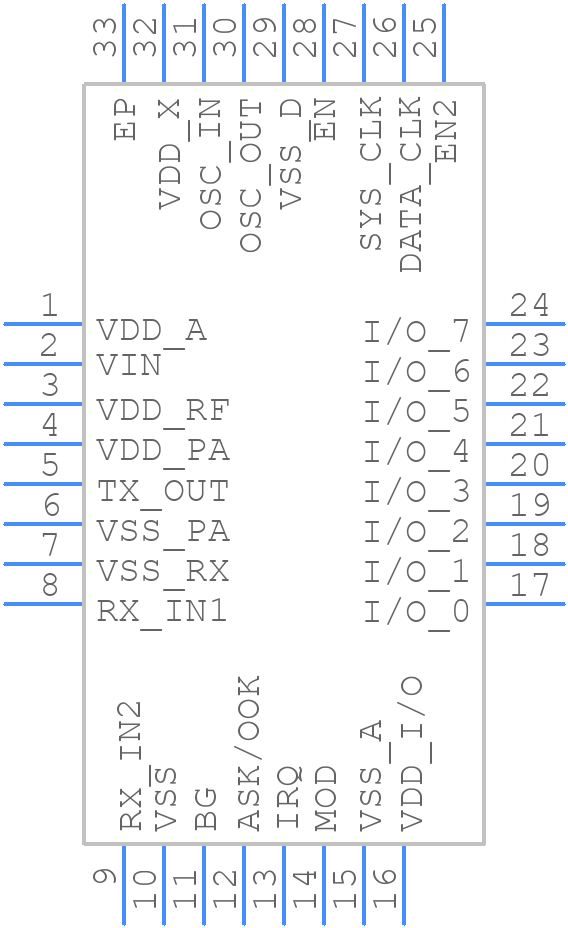

Symbol
TRF7960ARHBR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF7960ARHBR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E 2021
click to zoom
3D Models
TRF7960ARHBR - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E 2021
click to zoom

TRF7960ARHBR Details

  • Manufacturer Part Number:

    TRF7960ARHBR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TRF7960ARHBR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TRF7960ARHBR evaluation module documentation, which includes a 4-layer PCB stack-up and component placement guidelines to minimize noise and ensure optimal performance.
  • The TRF7960ARHBR datasheet provides general guidelines for antenna design, but for optimal performance, it's recommended to use a dedicated antenna design tool, such as the Texas Instruments Antenna Designer, to simulate and optimize the antenna design for the specific application.
  • The TRF7960ARHBR is specified to operate from -40°C to 85°C, but it's essential to consider the temperature coefficient of the device and the application's specific requirements to ensure reliable operation.
  • The TRF7960ARHBR datasheet provides a basic overview of anti-collision algorithms, but for a more comprehensive implementation, it's recommended to refer to the ISO/IEC 18000-3 standard and the Texas Instruments RFID System Design Guide.
  • To ensure reliable operation, it's recommended to use a combination of decoupling capacitors, ferrite beads, and LC filters to minimize power supply noise and ensure a stable voltage supply to the TRF7960ARHBR.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF7960ARHBR Overview

Use the download button to access the TRF7960ARHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF79, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
