TRF7961RHBT - Texas Instruments

Description: RFID Analog Front End Texas Instruments TRF7961RHBT RF Receiver Chip, 2.7 → 5.5 V, ASK, OOK, 32-Pin VQFN

Download TRF7961RHBT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

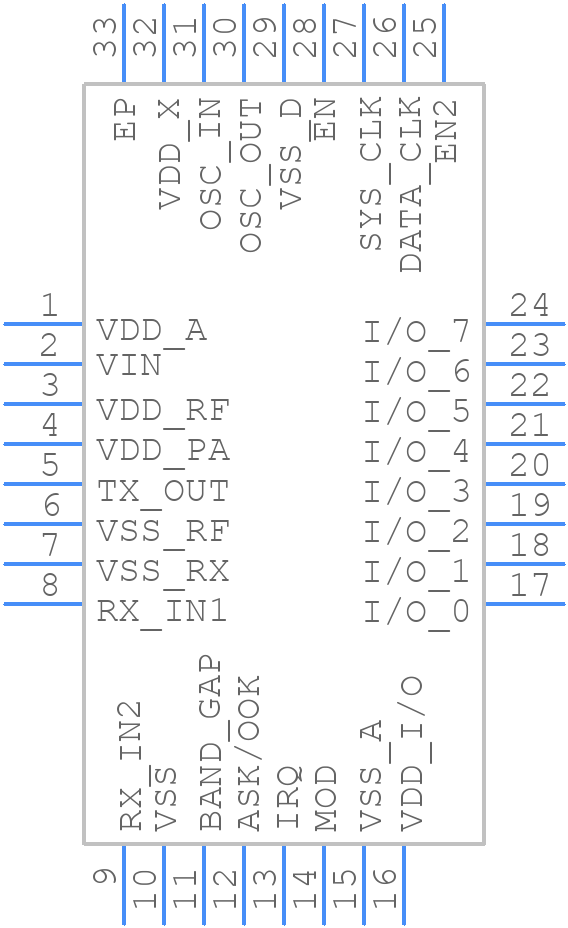

Symbol
TRF7961RHBT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF7961RHBT - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom
3D Models
TRF7961RHBT - Texas Instruments - 3D model - Quad Flat No-Lead - RHB (S-PVQFN-N32)-D
click to zoom

TRF7961RHBT Details

  • Manufacturer Part Number:

    TRF7961RHBT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Pin Count:

    32

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Frequency range : 13.56 MHz

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TRF7961RHBT Frequently Asked Questions (FAQs)

  • The recommended antenna design is a dipole or a patch antenna with a impedance of 50 ohms. The antenna should be tuned to the operating frequency of 13.56 MHz and have a gain of around 2 dBi.
  • The TRF7961RHBT can be configured for different RFID protocols by setting the appropriate registers and using the correct modulation and coding schemes. Refer to the application notes and the datasheet for specific configuration details.
  • The maximum distance achievable with the TRF7961RHBT depends on the antenna design, the power output, and the environment. Typically, a distance of up to 10 cm can be achieved with a standard antenna design.
  • The TRF7961RHBT has built-in support for anti-collision protocols such as ISO/IEC 14443-3 and ISO/IEC 15693-3. The device can detect collisions and perform anti-collision algorithms to resolve them.
  • The power consumption of the TRF7961RHBT depends on the operating mode and the frequency of operation. The device has a typical current consumption of 100 mA in transmit mode and 10 mA in receive mode. Power consumption can be optimized by using power-saving modes, reducing the transmit power, and optimizing the antenna design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TRF7961RHBT Overview

Use the download button to access the TRF7961RHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF79, or try a keyword search, such as Other Consumer ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
