TRF7961RHBTG4 - Texas Instruments

Description: RFID Transponders Multi-Standard High Freq RFID Read/Writ

Download TRF7961RHBTG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

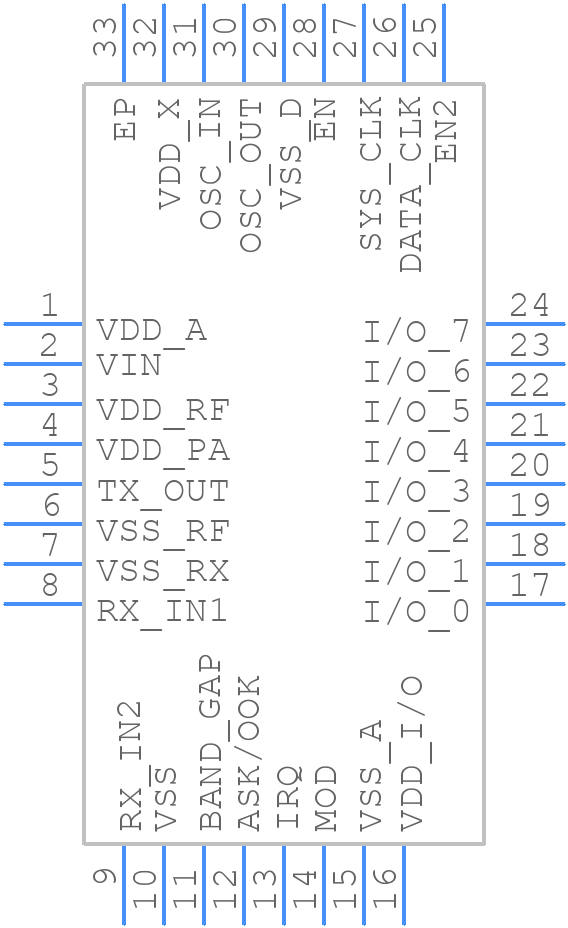

TRF7961RHBTG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TRF7961RHBTG4 - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom
3D Models
TRF7961RHBTG4 - Texas Instruments - 3D model - Quad Flat No-Lead - RHB0032E HEIGHT 1
click to zoom

TRF7961RHBTG4 Details

  • Manufacturer Part Number:

    TRF7961RHBTG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    Frequency range : 13.56 MHz

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PQCC-N32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Operating Temperature-Max:

    110 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TRF7961RHBTG4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TRF7961RHBTG4 Evaluation Module User's Guide (SLAU445). It's essential to follow this layout to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The TRF7961RHBTG4 can be configured for different frequency bands by adjusting the values of the external components, such as the inductors and capacitors, and by programming the device's registers. Refer to the TRF7961RHBTG4 datasheet and the TI RFID Design Center for more information.
  • The maximum distance achievable with the TRF7961RHBTG4 depends on various factors, including the antenna design, the power output, and the environment. In general, the device can achieve distances of up to 1 meter or more with a suitable antenna design and optimal system configuration.
  • The TRF7961RHBTG4 supports various anti-collision algorithms, including the ISO/IEC 18000-3 and EPCglobal Gen 2 standards. Implementing anti-collision algorithms requires programming the device's registers and using the device's built-in features, such as the Q-Value and the Tag IT algorithm. Refer to the TRF7961RHBTG4 datasheet and the TI RFID Design Center for more information.
  • The power consumption of the TRF7961RHBTG4 depends on the operating mode and the frequency of operation. In general, the device consumes around 100 mA to 150 mA in transmit mode and around 10 mA to 20 mA in receive mode. Refer to the TRF7961RHBTG4 datasheet for more information on power consumption.
