The recommended PCB layout for the TRF7962ARHBT involves keeping the RF traces as short as possible, using a solid ground plane, and placing the antenna as close to the chip as possible. A 4-layer PCB with a dedicated ground plane is recommended. TI provides a reference design and layout guidelines in the datasheet and application notes.
Optimizing the antenna design for the TRF7962ARHBT involves selecting the right antenna type (e.g., dipole, patch, or loop), tuning the antenna to the desired frequency, and ensuring impedance matching. TI provides antenna design guidelines and simulation models in the datasheet and application notes.
The TRF7962ARHBT has an operating temperature range of -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced performance and reliability. It's essential to follow the thermal design guidelines and ensure proper heat dissipation to maintain reliable operation.
Implementing antenna diversity with the TRF7962ARHBT involves using multiple antennas and switching between them to improve reception and reduce multipath effects. TI provides guidelines for antenna diversity implementation in the datasheet and application notes, including recommendations for antenna placement and switching algorithms.
The TRF7962ARHBT has built-in ESD protection, but it's still essential to follow proper ESD handling and protection procedures during manufacturing, assembly, and testing. TI recommends following the JEDEC standard for ESD protection and using ESD-protected equipment and tools.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF7962ARHBT Overview

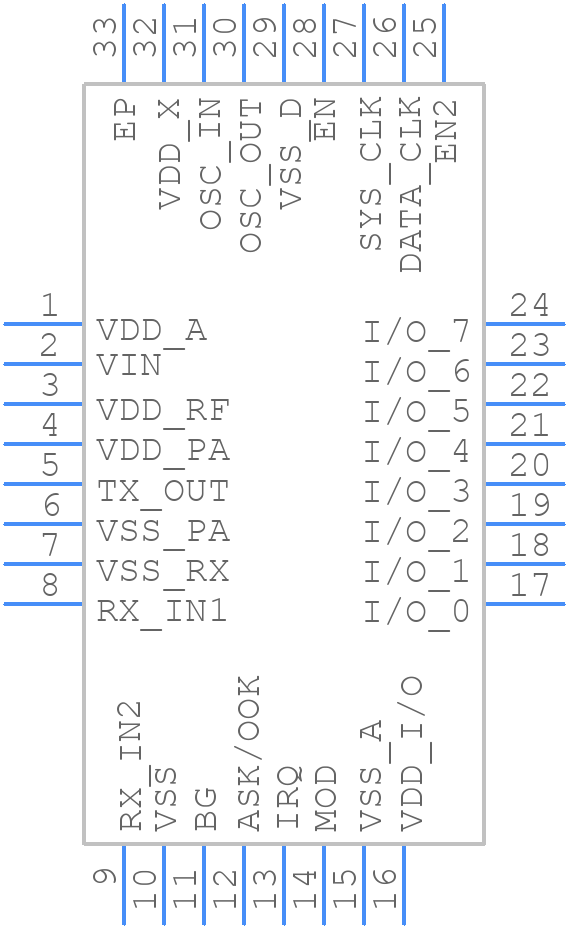

Use the download button to access the TRF7962ARHBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF79,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
