The recommended PCB layout for the TRF7964ARHBR involves placing the device near the antenna, using a solid ground plane, and minimizing the length of the RF traces. A 4-layer PCB with a dedicated ground plane is recommended. TI provides a reference design and layout guidelines in the TRF7964ARHBR datasheet and application notes.
Optimizing the antenna design for the TRF7964ARHBR involves selecting the right antenna type, size, and shape for the specific application. TI provides antenna design guidelines and recommendations in the TRF7964ARHBR datasheet and application notes. Additionally, antenna simulation tools and consulting with antenna design experts can be helpful.
The maximum operating temperature range for the TRF7964ARHBR is -40°C to 85°C. However, the device can be operated at temperatures above 85°C with reduced performance and reliability. It's essential to follow the recommended operating conditions and thermal management guidelines to ensure reliable operation.
Implementing antenna tuning for the TRF7964ARHBR involves adjusting the antenna's impedance to match the device's impedance. This can be done using a network analyzer, impedance matching software, or by following TI's recommended antenna tuning procedures outlined in the TRF7964ARHBR datasheet and application notes.
The recommended power supply decoupling and filtering techniques for the TRF7964ARHBR involve using a combination of capacitors, inductors, and resistors to filter out noise and ripple. TI provides guidelines for power supply decoupling and filtering in the TRF7964ARHBR datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRF7964ARHBR Overview

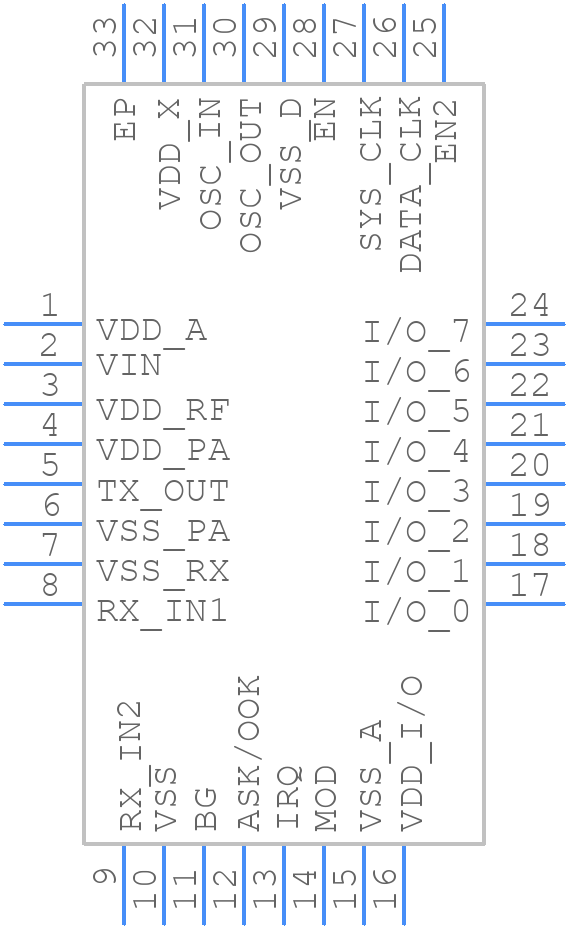

Use the download button to access the TRF7964ARHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRF79,
or try a keyword search, such as Other Consumer ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
