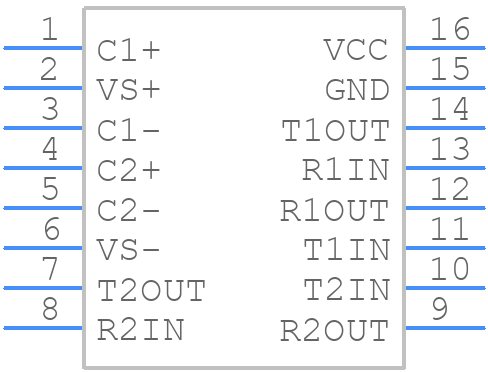

TRS232IN - Texas Instruments

TRS232IN Details

• Manufacturer Part Number:

  TRS232IN

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Pin Count:

  16

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.01

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Differential Output:

  NO

• Driver Number of Bits:

  2

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  LINE TRANSCEIVER

• Interface Standard:

  EIA-232-F; TIA-232-F; V.28

• JESD-30 Code:

  R-PDIP-T16

• JESD-609 Code:

  e4

• Length:

  19.305 mm

• Number of Functions:

  2

• Number of Terminals:

  16

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Out Swing-Min:

  10 V

• Output Low Current-Max:

  0.0032 A

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP16,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Receiver Number of Bits:

  2

• Seated Height-Max:

  5.08 mm

• Supply Current-Max:

  10 mA

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Supply Voltage1-Max:

  5.5 V

• Supply Voltage1-Min:

  4.5 V

• Supply Voltage1-Nom:

  5 V

• Surface Mount:

  NO

• Technology:

  BICMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
