Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to keep the analog and digital traces separate. Also, it's recommended to use a 10uF capacitor between VCC and GND, and to keep the input and output traces as short as possible.
The TRS3227EIDB has a built-in thermal shutdown feature that shuts down the device when the junction temperature exceeds 150°C. To handle this, ensure good thermal design and heat dissipation, and consider using a heat sink if necessary. Also, monitor the device temperature and take corrective action if it approaches the shutdown threshold.
The recommended input capacitance is 10uF, and the recommended output capacitance is 10uF to 22uF. However, the optimal capacitance values may vary depending on the specific application and operating conditions.
To ensure EMC, follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the device is properly decoupled from the power supply. Also, consider using a common-mode choke and a ferrite bead to reduce electromagnetic interference (EMI).
The recommended power-up sequence is to apply VCC first, followed by the input voltage. The recommended power-down sequence is to remove the input voltage first, followed by VCC. This helps to prevent damage to the device and ensures proper operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRS3227EIDB Overview

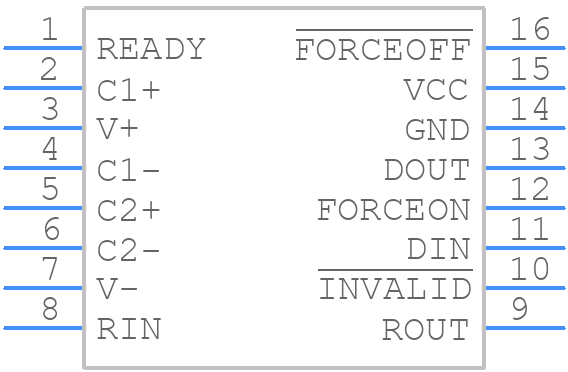

Use the download button to access the TRS3227EIDB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRS32,
or try a keyword search, such as Line Driver or Receivers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
