A good PCB layout for TRS3243EIRHBR involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the traces connecting the device to the power supply and other components.
To ensure proper powering and decoupling, use a high-quality power supply, add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device, and consider adding a ferrite bead or inductor in series with the power supply to filter out noise.
The TRS3243EIRHBR has a maximum junction temperature of 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and avoid blocking the airflow around the device. Also, consider using thermal interface materials to improve heat transfer.
To troubleshoot issues, start by verifying the power supply and decoupling, then check the input and output signals using an oscilloscope. Consult the datasheet and application notes for guidance on signal integrity and layout considerations. If issues persist, consider consulting with a Texas Instruments support engineer or a seasoned design engineer.
To ensure EMI/EMC compliance, follow proper PCB layout and shielding practices, use EMI filters or common-mode chokes if necessary, and consider using a metal shield or enclosure to contain emissions. Consult the datasheet and relevant EMI/EMC standards (e.g., CISPR 22) for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TRS3243EIRHBR Overview

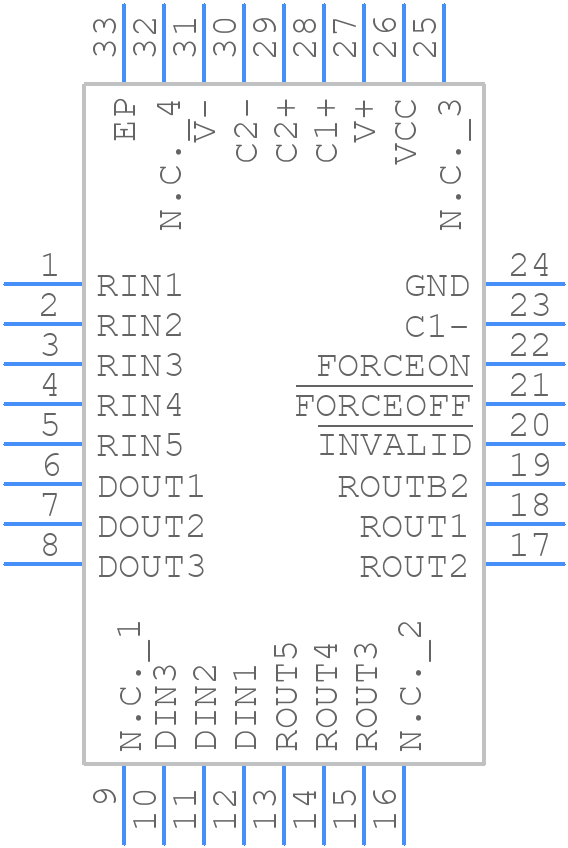

Use the download button to access the TRS3243EIRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRS32,
or try a keyword search, such as Line Driver or Receivers
