- Part Number TRSF3243EIRHBR
- Manufacturer Texas Instruments
- Pin Count 33
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RHB0032E
- Released Date Aug 11, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TRSF3243EIRHBR Details
-
Manufacturer Part Number:
TRSF3243EIRHBR
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
VQFN-32
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
-
Differential Output:
NO
TRSF3243EIRHBR Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a separate ground plane.
-
To ensure reliable operation, follow the recommended operating conditions, including voltage and current ratings. Also, consider the thermal management of the device, as excessive heat can affect performance. Use thermal pads or heat sinks if necessary, and ensure good airflow around the device.
-
Operating the TRSF3243EIRHBR outside the recommended supply voltage range (2.7V to 3.6V) may affect its performance, power consumption, and reliability. Lower voltages may reduce the device's speed and increase power consumption, while higher voltages may increase power consumption and reduce the device's lifespan.
-
The TRSF3243EIRHBR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing, assembly, and testing. Use ESD-safe materials, grounding straps, and follow proper handling techniques to prevent damage to the device.
-
When using the TRSF3243EIRHBR in a high-speed application, consider the device's bandwidth, rise time, and fall time. Ensure that the PCB layout is optimized for high-speed signals, and use proper termination techniques to minimize signal reflections and ringing.
Trust Checks
Community Provided
System Verified
Community Approved
TRSF3243EIRHBR Overview

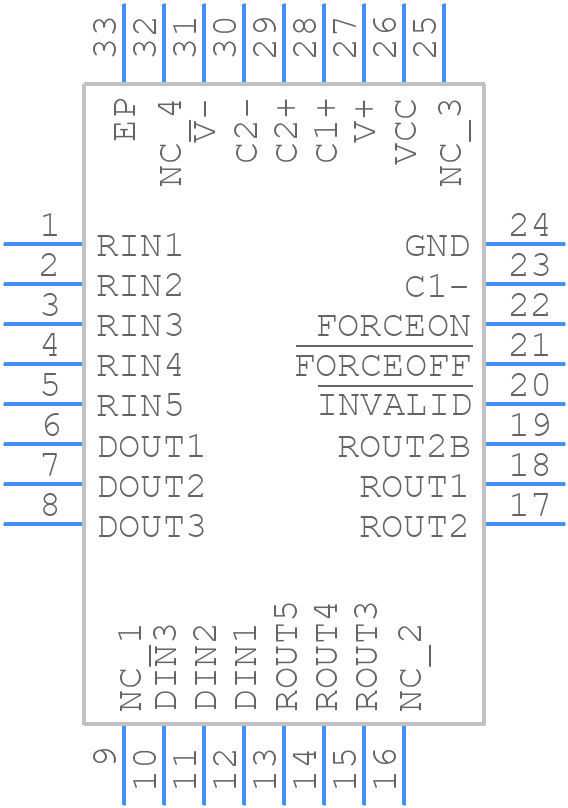

Use the download button to access the TRSF3243EIRHBR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TRSF3,
or try a keyword search, such as Line Driver or Receivers
