TS12A4514D - Texas Instruments

Description: Low-Voltage, Low On-State Resistance SPST CMOS Analog Switches

Download TS12A4514D Model

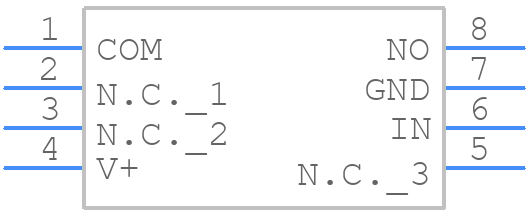

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TS12A4514D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TS12A4514D - Texas Instruments  - 3D model - Small Outline Packages - D
click to zoom

TS12A4514D Details

  • Manufacturer Part Number:

    TS12A4514D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH 12V AND 5V

  • Analog IC - Other Type:

    SPST

  • Bandwidth-Nom:

    475 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    94 dB

  • On-state Resistance Match-Nom:

    18.5 Ω

  • On-state Resistance-Max (Ron):

    40 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.0002 mA

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TS12A4514D Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to reduce crosstalk.
  • The TS12A4514D has a thermal pad that must be connected to a solid ground plane to dissipate heat efficiently. Ensure that the PCB has adequate thermal vias and a heat sink if necessary. Operating the device within the recommended temperature range (–40°C to 85°C) and providing adequate airflow can also help prevent overheating.
  • The TS12A4514D is capable of supporting data rates up to 4.25 Gbps. However, the actual data rate achieved depends on the system design, PCB layout, and signal integrity. It's essential to simulate and test the design to ensure that it meets the required data rate and signal quality.
  • The TS12A4514D can be configured for differential or single-ended operation by setting the appropriate pins. For differential operation, connect the DIFF pin to VCC, and for single-ended operation, connect it to GND. Additionally, ensure that the input and output pins are properly terminated and configured according to the desired mode of operation.
  • The TS12A4514D requires a specific power sequencing to ensure proper operation. The recommended power-up sequence is VCC, followed by VCCIO, and then the input signals. The power-down sequence should be reversed. Failure to follow the recommended power sequencing may result in device damage or malfunction.
