TS12A4514DR - Texas Instruments

Description: Texas Instruments TS12A4514DR, Analogue Switch SPST, 2 → 12 V, 8-Pin SOIC

Download TS12A4514DR Model

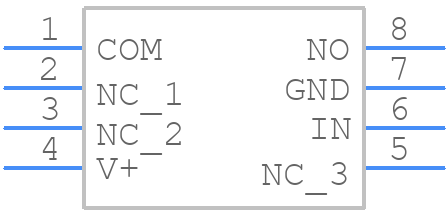

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TS12A4514DR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G8)
click to zoom
3D Models
TS12A4514DR - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G8)
click to zoom

TS12A4514DR Details

  • Manufacturer Part Number:

    TS12A4514DR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO OPERATES WITH 12V AND 5V

  • Analog IC - Other Type:

    SPST

  • Bandwidth-Nom:

    475 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    94 dB

  • On-state Resistance Match-Nom:

    18.5 Ω

  • On-state Resistance-Max (Ron):

    40 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.0002 mA

  • Supply Voltage-Max (Vsup):

    12.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TS12A4514DR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and avoiding vias under the device. Additionally, ensure that the input and output traces are well-separated to reduce crosstalk.
  • The TS12A4514DR has a thermal pad on the bottom of the package, which should be connected to a solid ground plane or a thermal relief pattern on the PCB. Ensure good airflow around the device, and consider using a heat sink or thermal interface material if the device will be operating at high temperatures or high currents.
  • While the datasheet specifies a maximum operating frequency of 1.4 GHz, the actual frequency limit may be higher depending on the specific application and PCB design. However, it's essential to ensure that the device is operated within the specified power supply voltage and current limits to avoid overheating or damage.
  • The input and output termination resistors should be selected based on the specific application and signal integrity requirements. A general rule of thumb is to use a 50-ohm termination resistor for high-speed signals, but this may need to be adjusted depending on the specific signal frequency, amplitude, and PCB design.
  • A good power supply decoupling scheme involves using a combination of ceramic and electrolytic capacitors to filter out noise and ripple. Place a 0.1 uF ceramic capacitor close to the device's power pins, and add a 10 uF electrolytic capacitor in parallel to filter out lower-frequency noise.
