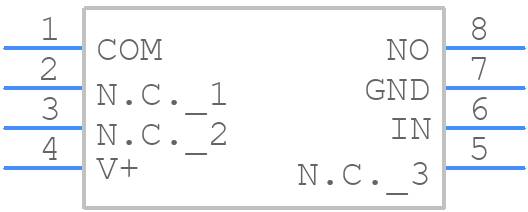

TS12A4514P - Texas Instruments

TS12A4514P Details

• Manufacturer Part Number:

  TS12A4514P

• Brand Name:

  Texas Instruments

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Not Recommended

• Part Package Code:

  DIP

• Pin Count:

  8

• Country Of Origin:

  Mexico

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.90

• Manufacturer:

  Texas Instruments

• YTEOL:

  3.9

• Additional Feature:

  ALSO OPERATES WITH 12V AND 5V

• Analog IC - Other Type:

  SPST

• Bandwidth-Nom:

  475 MHz

• JESD-30 Code:

  R-PDIP-T8

• JESD-609 Code:

  e4

• Length:

  9.81 mm

• Normal Position:

  NO

• Number of Channels:

  1

• Number of Functions:

  1

• Number of Terminals:

  8

• Off-state Isolation-Nom:

  94 dB

• On-state Resistance Match-Nom:

  18.5 Ω

• On-state Resistance-Max (Ron):

  40 Ω

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output:

  SEPARATE OUTPUT

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP8,.3

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  5.08 mm

• Signal Current-Max:

  0.02 A

• Supply Current-Max (Isup):

  0.0002 mA

• Supply Voltage-Max (Vsup):

  12.6 V

• Supply Voltage-Min (Vsup):

  3 V

• Supply Voltage-Nom (Vsup):

  3.3 V

• Surface Mount:

  NO

• Switch-off Time-Max:

  120 ns

• Switch-on Time-Max:

  175 ns

• Switching:

  BREAK-BEFORE-MAKE

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Nickel/Palladium/Gold (Ni/Pd/Au)

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  6.35 mm
