TS12A4514PE4 - Texas Instruments

Description: TS12A4514PE4, Analogue SPST Switch Single SPST, 3 V, 5 V, 9 V, 8-Pin, PDIP, 1

Download TS12A4514PE4 Model

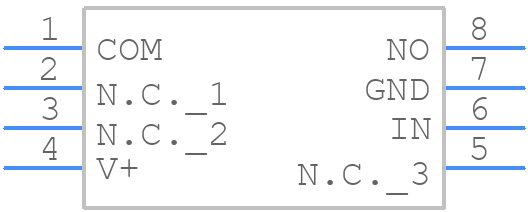

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TS12A4514PE4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom
3D Models
TS12A4514PE4 - Texas Instruments  - 3D model - Dual-In-Line Packages - 8-DIP (0.300", 7.62mm)
click to zoom

TS12A4514PE4 Details

  • Manufacturer Part Number:

    TS12A4514PE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    DIP-8

  • Pin Count:

    8

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    ALSO OPERATES WITH 12V AND 5V

  • Analog IC - Other Type:

    SPST

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Normal Position:

    NO

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    94 dB

  • On-state Resistance-Max (Ron):

    40 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    0.001 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    NO

  • Switch-off Time-Max:

    120 ns

  • Switch-on Time-Max:

    175 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    6.35 mm

TS12A4514PE4 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the signal traces short, using a solid ground plane, and minimizing noise coupling. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure the TS12A4514PE4 operates within the specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. Use a thermal pad or a heat sink with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the device and avoid blocking the airflow with nearby components.
  • The maximum allowable voltage on the input pins of the TS12A4514PE4 is the supply voltage (VCC) plus 0.3V. Exceeding this voltage can cause damage to the device. It's essential to ensure that the input voltage does not exceed this limit, especially during power-up or power-down sequences.
  • The TS12A4514PE4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the device pins or handling the device in a way that could generate static electricity.
  • The recommended power-up sequence for the TS12A4514PE4 is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the device is properly initialized and configured before the input signals are applied. A power-up sequence of VCC first, followed by input signals, helps prevent unwanted device behavior or latch-up.
