TS12A4517D - Texas Instruments

Description: TS12A4517D

Download TS12A4517D Model

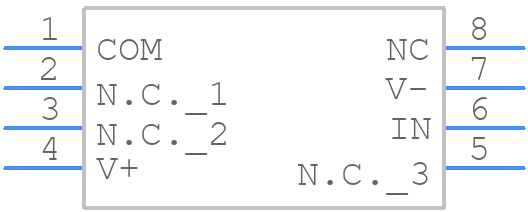

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
TS12A4517D - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D (R-PDSO-G8)
click to zoom
3D Models
TS12A4517D - Texas Instruments  - 3D model - Small Outline Packages - D (R-PDSO-G8)
click to zoom

TS12A4517D Details

  • Manufacturer Part Number:

    TS12A4517D

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    SUPPLY VOLTAGE CAN ALSO OPERATE WITH 3V TO 3.6V

  • Analog IC - Other Type:

    SPST

  • Bandwidth-Nom:

    464 MHz

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage-Max (Vsup):

    -1.95 V

  • Neg Supply Voltage-Min (Vsup):

    -1 V

  • Neg Supply Voltage-Nom (Vsup):

    -1.8 V

  • Normal Position:

    NC

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Off-state Isolation-Nom:

    83 dB

  • On-state Resistance Match-Nom:

    28 Ω

  • On-state Resistance-Max (Ron):

    40 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Signal Current-Max:

    0.02 A

  • Supply Current-Max (Isup):

    0.5 mA

  • Supply Voltage-Max (Vsup):

    11 V

  • Supply Voltage-Min (Vsup):

    1 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    150 ns

  • Switch-on Time-Max:

    120 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TS12A4517D Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the input and output traces short, using a solid ground plane, and minimizing noise coupling. Additionally, consider using a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The TS12A4517D has a thermal pad on the bottom, which should be connected to a thermal relief pattern on the PCB. Ensure good thermal conductivity by using a thermal interface material (TIM) and a heat sink if necessary. Keep the device away from heat sources and ensure good airflow around the device.
  • The TS12A4517D is specified to operate up to 1.7 GHz, but it can be used at higher frequencies with some degradation in performance. However, it's essential to consult the datasheet and application notes for specific guidance on operating frequency and signal integrity.
  • To ensure signal integrity, use controlled impedance traces, minimize trace length, and use termination resistors as needed. Also, consider using a signal integrity analysis tool to simulate and optimize the signal path. Additionally, follow the recommended layout and routing guidelines in the datasheet.
  • The TS12A4517D requires a stable power supply with minimal noise and ripple. Use a combination of ceramic and electrolytic capacitors for power supply decoupling, with a total capacitance of at least 10 μF. Place the decoupling capacitors close to the device and ensure good power supply routing.
