TS2PCIE2212ZAHRG1 - Texas Instruments

Description: 4-channel PCIe 2:1 Multiplexer/Demultiplexer Passive FET Switch

Download TS2PCIE2212ZAHRG1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

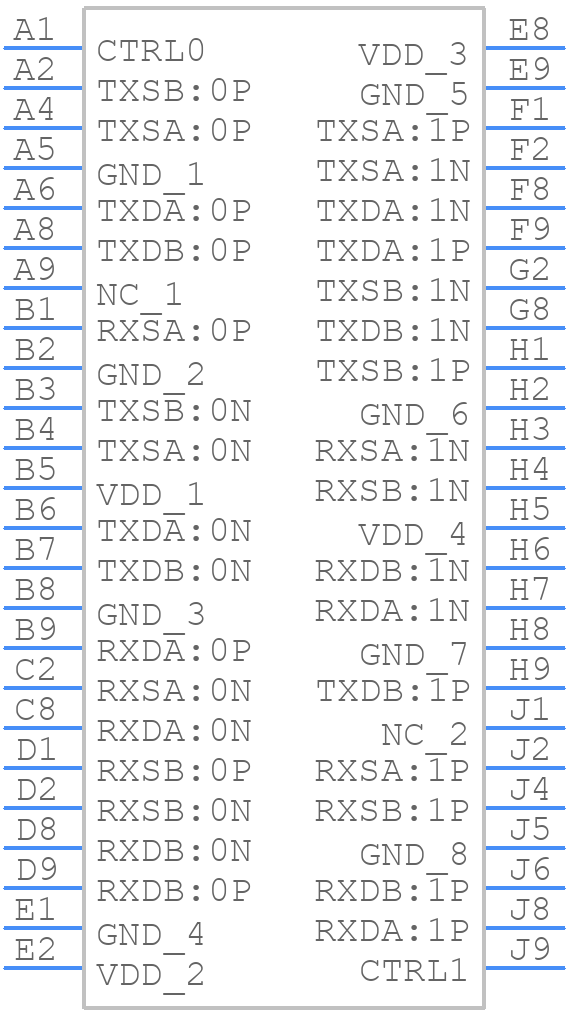

TS2PCIE2212ZAHRG1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS2PCIE2212ZAHRG1 - Texas Instruments PCB footprint - BGA - BGA - TCA5013ZAHR
click to zoom
3D Models
TS2PCIE2212ZAHRG1 - Texas Instruments - 3D model - BGA - TCA5013ZAHR
click to zoom

TS2PCIE2212ZAHRG1 Details

  • Manufacturer Part Number:

    TS2PCIE2212ZAHRG1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    BGA

  • Pin Count:

    48

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Bus Compatibility:

    PCI

  • Data Transfer Rate-Max:

    312.5 MBps

  • JESD-30 Code:

    S-PBGA-B48

  • JESD-609 Code:

    e1

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

  • uPs/uCs/Peripheral ICs Type:

    BUS CONTROLLER, PCI

TS2PCIE2212ZAHRG1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the PCIe specification guidelines for PCB layout. Additionally, using a 4-layer PCB with a solid ground plane and a separate power plane can help reduce noise and improve signal integrity.
  • To ensure signal integrity, it's essential to follow proper PCB design and layout guidelines, use high-quality components, and implement proper termination and filtering. Additionally, using a signal integrity analysis tool can help identify potential issues before prototyping.
  • The TS2PCIE2212ZAHRG1 has an operating temperature range of -40°C to 85°C, but it's essential to consider the junction temperature (TJ) which is specified as 150°C. It's recommended to ensure the device is operated within the specified temperature range to ensure reliability and performance.
  • The TS2PCIE2212ZAHRG1 requires a 3.3V power supply, and it's recommended to use a low-dropout regulator (LDO) to ensure a stable voltage supply. Power sequencing should be handled according to the PCIe specification, with the 3.3V power supply being applied before the PCIe clock signal.
  • The TS2PCIE2212ZAHRG1 uses a 100MHz clock signal, and it's recommended to use a clock generator that meets the PCIe specification. A clock generator with a low jitter and phase noise is essential to ensure reliable data transmission.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS2PCIE2212ZAHRG1 Overview

Use the download button to access the TS2PCIE2212ZAHRG1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS2PC, or try a keyword search, such as Bus Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
