A good PCB layout for the TS3A44159RSVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
The TS3A44159RSVR requires a single 1.8V to 3.6V power supply. It's recommended to power the device with a clean, low-noise power supply, and to sequence the power-on in the following order: VCC, then VIN. A 10uF capacitor on the VIN pin and a 1uF capacitor on the VCC pin are recommended to filter out noise.
The TS3A44159RSVR can achieve data rates of up to 100 Mbps. However, the actual data rate achieved will depend on the specific application, PCB layout, and signal quality. The device's bandwidth is limited by the internal capacitance and the external load capacitance, so it's essential to optimize the PCB layout and signal routing to achieve the highest data rates.
To troubleshoot issues with the TS3A44159RSVR, start by verifying the power supply and signal integrity. Check for proper power sequencing, and ensure that the device is properly terminated. Common pitfalls to avoid include incorrect PCB layout, inadequate power supply decoupling, and insufficient signal termination.
The TS3A44159RSVR has a maximum junction temperature of 150°C. To ensure reliable operation over temperature, it's essential to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from heat sources. Additionally, ensure that the PCB is designed to minimize thermal resistance and that the device is operated within its recommended operating temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3A44159RSVR Overview

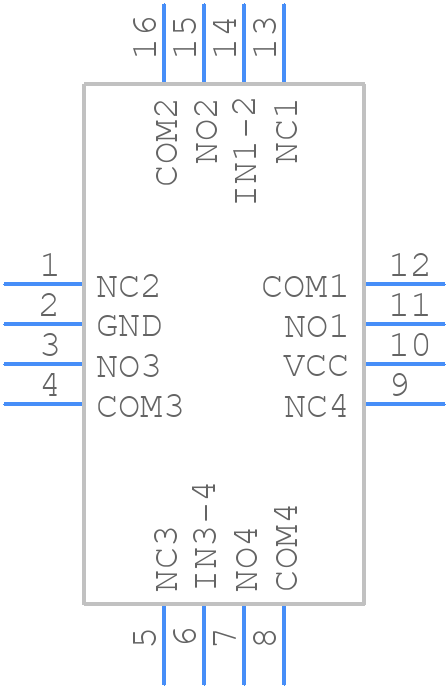

Use the download button to access the TS3A44159RSVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3A4,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
