CHIP CARRIER, HEAT SINK/SLUG, VERY VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Signal Current-Max:
0.128 A
Supply Current-Max (Isup):
0.4 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Switch-off Time-Max:
5 ns
Switch-on Time-Max:
7 ns
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.5 mm
TS3DDR3812RUAR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout and routing guide in their application notes (e.g., SLVAE25) and design guides (e.g., TIDA-00726). It's essential to follow these guidelines to ensure signal integrity and minimize signal degradation.
The TS3DDR3812RUAR requires a specific power sequencing and voltage ramp-up procedure to ensure proper operation. Refer to the datasheet and application notes (e.g., SLVAE25) for detailed guidelines on power-up and power-down sequences.
The TS3DDR3812RUAR has a maximum junction temperature (TJ) of 150°C. Ensure proper thermal management by providing adequate heat sinking, airflow, and thermal interface materials to maintain a safe operating temperature.
Use Texas Instruments' debugging tools, such as the TI Logic Analyzer or the TI Development Kit, to troubleshoot and debug issues. Additionally, consult the datasheet, application notes, and online resources (e.g., TI E2E forums) for guidance on troubleshooting common issues.
The TS3DDR3812RUAR is designed to meet EMI and RFI standards. However, it's essential to follow proper PCB design and layout practices, such as using shielding, grounding, and filtering, to minimize EMI and RFI emissions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3DDR3812RUAR Overview

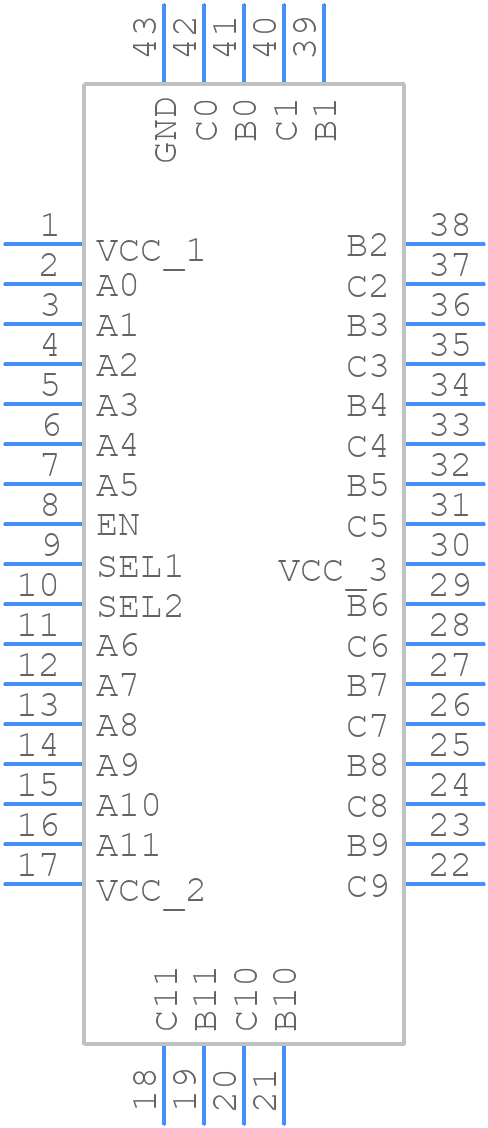

Use the download button to access the TS3DDR3812RUAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3DD,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
