For optimal performance, it is recommended to follow Texas Instruments' recommended PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package can also be used to improve heat dissipation.
To ensure signal integrity, use controlled impedance traces, minimize trace lengths, and use signal termination resistors as recommended in the datasheet. Additionally, use a common mode filter or a differential filter to reduce electromagnetic interference (EMI) and improve signal quality.
The recommended power sequencing is to power up the VCC pin first, followed by the VCCA pin. The voltage ramp-up procedure should be slow and controlled, with a recommended rate of 1-2 ms/V to prevent latch-up and ensure reliable operation.
To prevent electrostatic discharge (ESD) damage, use ESD protection devices such as TVS diodes or ESD arrays on the input and output pins. Additionally, follow proper handling and storage procedures to prevent ESD damage. For latch-up prevention, ensure that the power supply voltage is within the recommended range and use a latch-up protection circuit if necessary.
The thermal design considerations include ensuring good thermal conductivity between the device and the PCB, using thermal vias, and providing adequate airflow. To calculate the junction temperature, use the thermal resistance (RθJA) and the power dissipation (PD) values provided in the datasheet, and follow the equation: Tj = Ta + (RθJA * PD), where Ta is the ambient temperature.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3DV20812RHHR Overview

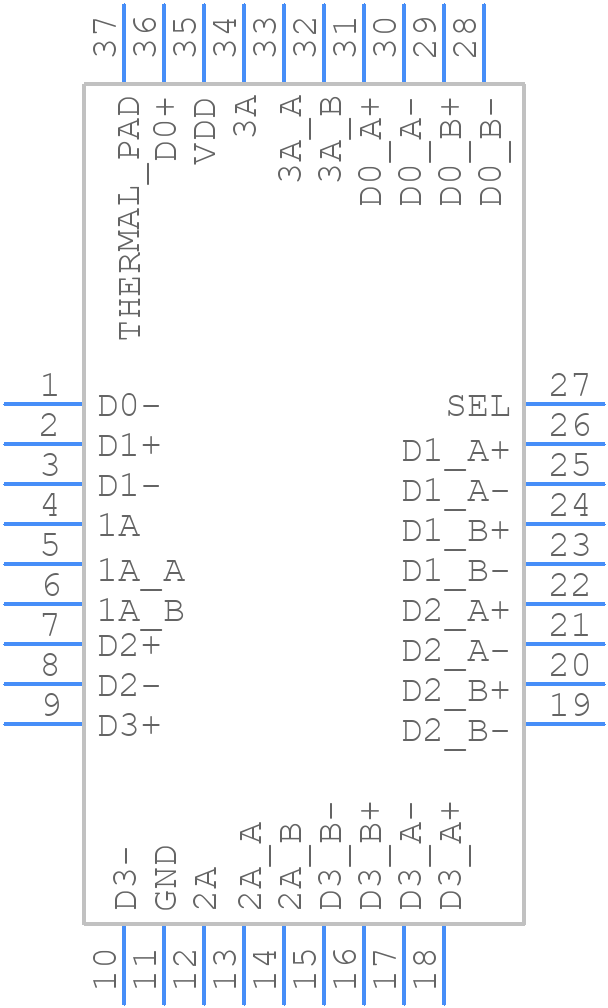

Use the download button to access the TS3DV20812RHHR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3DV,
or try a keyword search, such as Multiplexers or Switches
