For optimal performance, it's recommended to follow Texas Instruments' recommended PCB layout guidelines, including using a solid ground plane, minimizing trace lengths, and using thermal vias to dissipate heat. A thermal pad on the bottom of the package should be connected to a solid copper plane on the PCB to ensure efficient heat dissipation.
To ensure signal integrity and minimize EMI emissions, use controlled impedance traces, add decoupling capacitors, and consider using a common-mode filter or EMI filter. Additionally, follow proper PCB layout practices, such as separating analog and digital signals, and using shielding or grounding techniques to reduce radiation.
The recommended power sequencing is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD). The voltage ramp-up procedure should be slow and controlled, with a recommended rate of 1-2 ms/V to prevent latch-up or damage to the device.
Handle the device in an ESD-protected environment, using wrist straps, anti-static mats, and ESD-safe packaging materials. Store the device in its original packaging or in a conductive bag to prevent ESD damage.
Use a high-speed oscilloscope and a signal generator to characterize the device's frequency response, gain, and phase shift. Use a network analyzer to measure the device's S-parameters and perform de-embedding to extract the device's intrinsic performance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3DV642A0RUAR Overview

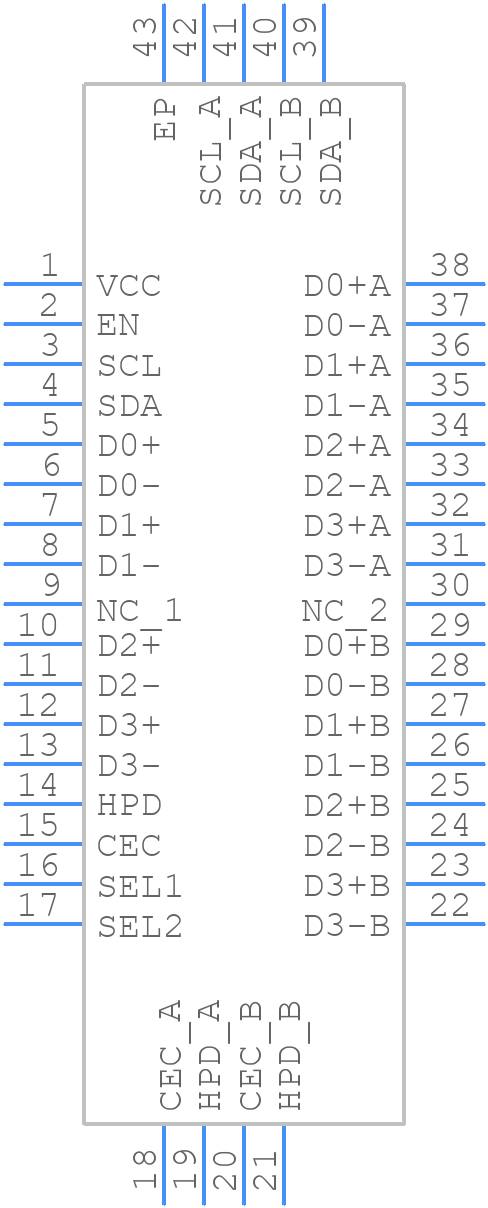

Use the download button to access the TS3DV642A0RUAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3DV,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
