Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good layout practices, such as keeping the signal paths short, using a solid ground plane, and avoiding vias under the device. Additionally, TI offers a PCB layout guide (SLUU323) that provides more detailed information.
The TS3DV642RUATQ1 requires a single 1.8-V to 3.3-V power supply. Ensure that the power supply is clean and well-regulated, and that the device is properly decoupled using ceramic capacitors (e.g., 0.1 μF and 1 μF) close to the power pins. Also, follow the recommended power-up and power-down sequences to prevent latch-up or other issues.
The TS3DV642RUATQ1 supports data rates up to 1.5 Gbps, making it suitable for high-speed applications such as HDMI, DisplayPort, and USB 3.0.
The TS3DV642RUATQ1 has a maximum junction temperature (TJ) of 150°C. Ensure good thermal management by providing adequate heat dissipation through the PCB, using thermal vias, and keeping the device away from heat sources. TI also recommends using a thermal pad or heat sink if necessary.
Yes, the TS3DV642RUATQ1 is a sensitive device and requires proper ESD protection. Follow TI's ESD protection guidelines, use ESD protection devices (e.g., TVS diodes) on the input lines, and ensure that the PCB is designed with ESD protection in mind.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3DV642RUATQ1 Overview

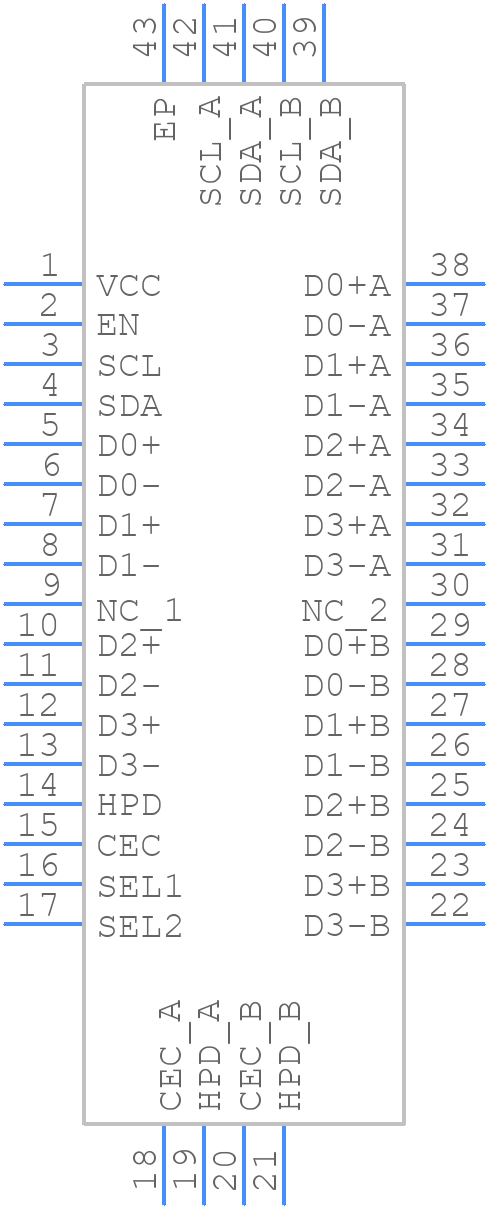

Use the download button to access the TS3DV642RUATQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3DV,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
