Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the signal paths.
The TS3L110DGVR requires a 1.8V to 3.6V power supply, and it's recommended to use a low-dropout regulator (LDO) or a switching regulator with a low output voltage ripple to ensure stable operation. Additionally, decoupling capacitors should be placed close to the device to filter out noise and voltage spikes.
The TS3L110DGVR is capable of supporting data rates up to 100 Mbps, but the actual data rate achieved will depend on the specific application, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to ensure reliable operation at high data rates.
The TS3L110DGVR has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat, and storing the device in an ESD-protected package. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
The TS3L110DGVR is specified to operate from -40°C to 85°C, but it's recommended to derate the device's performance and reliability at extreme temperatures. It's also important to ensure proper thermal management, such as using a heat sink or thermal pad, to prevent overheating.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3L110DGVR Overview

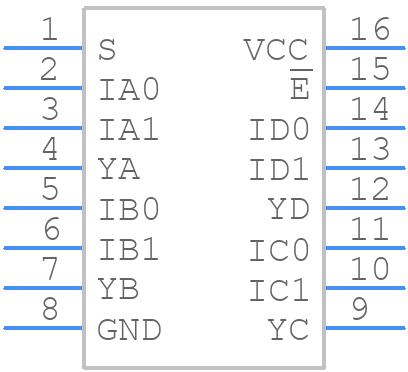

Use the download button to access the TS3L110DGVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3L1,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
