A good PCB layout for the TS3L110DR involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a shielded cable for the input signal and to keep the device away from high-current or high-voltage traces.
The TS3L110DR requires a single 3.3V or 5V power supply. It's recommended to use a low-dropout linear regulator or a switching regulator with a low noise output to power the device. Power sequencing is not critical, but it's recommended to power up the device after the input signal is stable and the output is in a high-impedance state.
The TS3L110DR can support data rates up to 100 Mbps, but the actual data rate achievable depends on the specific application, PCB layout, and signal quality. It's recommended to use a signal integrity analysis tool to determine the maximum data rate for a specific design.
To troubleshoot issues with the TS3L110DR, use an oscilloscope to measure the input and output signals, and check for signal integrity issues such as ringing or overshoot. For power issues, check the power supply voltage and current, and ensure that the device is properly decoupled. Additionally, check the device's thermal performance and ensure that it is operating within the recommended temperature range.
The TS3L110DR is rated for operation up to 85°C, but the device's performance and reliability may degrade at higher temperatures. It's recommended to derate the device's performance and ensure proper thermal management, such as using a heat sink or thermal interface material, to ensure reliable operation in high-temperature environments.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3L110DR Overview

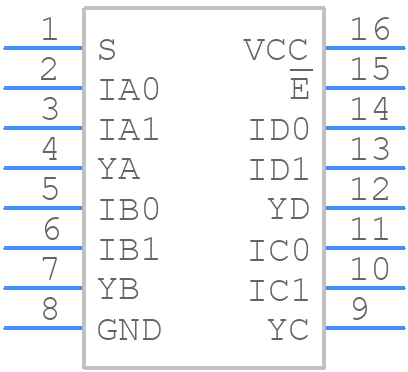

Use the download button to access the TS3L110DR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3L1,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
