Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for the input and output signals.
The TS3L110PWE4 requires a bias voltage of 2.5V to 5.5V on the VCC pin. Ensure that the bias voltage is stable and within the recommended range. Additionally, the input signal should be AC-coupled to the device, and the output signal should be terminated with a 50-ohm load to ensure proper operation.
The TS3L110PWE4 is specified to operate up to 1.5 GHz, but it can be used at higher frequencies with some degradation in performance. However, it's recommended to consult with Texas Instruments or perform characterization tests to determine the device's performance at frequencies above 1.5 GHz.
The TS3L110PWE4 has a maximum junction temperature of 150°C. Ensure that the device is mounted on a PCB with a good thermal conductivity, and consider using thermal vias or a heat sink to dissipate heat. Additionally, follow proper soldering and assembly techniques to ensure good thermal contact between the device and the PCB.
The recommended input signal amplitude for the TS3L110PWE4 is typically in the range of 100 mVpp to 1 Vpp. However, the device can handle input signals up to 2 Vpp, but with some degradation in performance. It's recommended to consult the datasheet or perform characterization tests to determine the optimal input signal amplitude for a specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS3L110PWE4 Overview

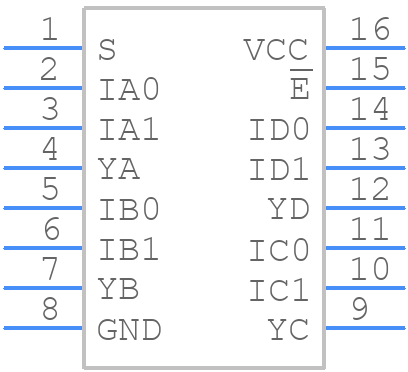

Use the download button to access the TS3L110PWE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS3L1,
or try a keyword search, such as Multiplexers or Switches
