TS421IQT - STMicroelectronics

Description: 360mW mono audio amplifier with active low standby mode

Download TS421IQT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

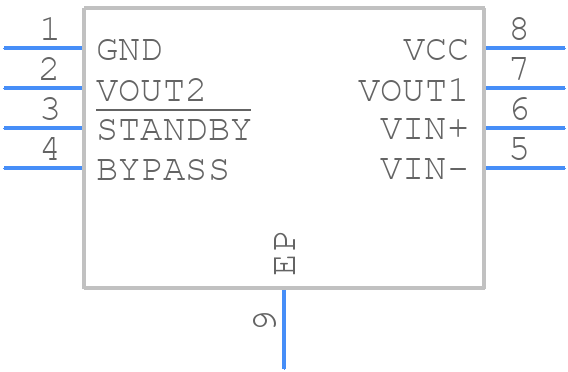

TS421IQT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS421IQT - STMicroelectronics PCB footprint - Small Outline No-lead - Small Outline No-lead - DFN8 (3x3 mm)
click to zoom
3D Models
TS421IQT - STMicroelectronics - 3D model - Small Outline No-lead - DFN8 (3x3 mm)
click to zoom

TS421IQT Details

  • Manufacturer Part Number:

    TS421IQT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DFP

  • Package Description:

    MLFP-8

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    3.5

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.367 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TS421IQT Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the TS421IQT is 2.7V to 5.5V, although it can tolerate a voltage range of 2.5V to 6.5V for short periods.
  • To ensure the internal oscillator's stability and accuracy, it's recommended to use a high-quality external crystal oscillator or a ceramic resonator, and to follow the recommended layout and decoupling guidelines in the datasheet.
  • The maximum current that can be sourced or sunk by the TS421IQT's I/O pins is 20mA, although it's recommended to limit the current to 10mA or less to ensure reliable operation and prevent overheating.
  • The TS421IQT's GPIO pins can be configured as inputs or outputs using the relevant registers and bit fields. For example, the GPIOx_MODER register is used to set the mode of each GPIO pin, and the GPIOx_OTYPER register is used to set the output type.
  • The internal pull-up and pull-down resistors on the TS421IQT are used to weakly pull the I/O pins to a logic level when they are configured as inputs, helping to prevent floating inputs and reduce power consumption.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS421IQT Overview

Use the download button to access the TS421IQT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS421, or try a keyword search, such as Audio/Video Amplifiers
