TS4871IDT - STMicroelectronics

Description: STMICROELECTRONICS - TS4871IDT - AMPLIFIER, CLASS AB, 1W, SOIC-8

Download TS4871IDT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

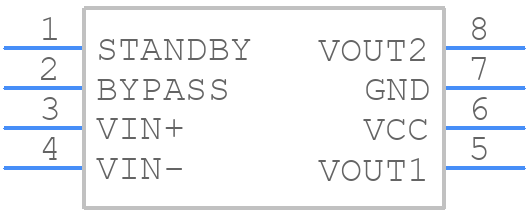

Symbol
TS4871IDT - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS4871IDT - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - TS4871IDT_11
click to zoom
3D Models
TS4871IDT - STMicroelectronics - 3D model - Small Outline Packages - TS4871IDT_11
click to zoom

TS4871IDT Details

  • Manufacturer Part Number:

    TS4871IDT

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Harmonic Distortion:

    1%

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    1 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Current-Max:

    8 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3.9 mm

TS4871IDT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TS4871IDT involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and placing it close to the device can help reduce EMI.
  • To ensure the TS4871IDT operates within the recommended junction temperature range, use a thermal pad or heat sink to dissipate heat, and ensure good airflow around the device. You can also use thermal simulation tools to estimate the junction temperature and optimize the design accordingly.
  • The recommended input capacitor value for the TS4871IDT is typically in the range of 1-10uF, depending on the input voltage and output current requirements. A larger capacitor value can help reduce input voltage ripple, but may increase the startup time.
  • To troubleshoot issues with the TS4871IDT, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple or oscillations. If the issue persists, consult the datasheet and application notes for guidance.
  • Yes, the TS4871IDT is suitable for high-reliability and automotive applications. It is AEC-Q100 qualified and meets the requirements for automotive applications. However, ensure that the device is used within the recommended operating conditions and that the PCB design meets the requirements for the specific application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS4871IDT Overview

Use the download button to access the TS4871IDT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS487, or try a keyword search, such as Audio/Video Amplifiers
