TS488IST - STMicroelectronics

Description: 2.2V ~ 5.5V Pop-free 120 mW stereo headphone Amplifier IC Headphones, 2-Channel (Stereo) Class AB 8-MiniSO

Download TS488IST Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

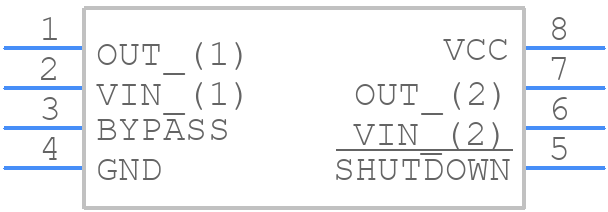

TS488IST - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TS488IST - STMicroelectronics PCB footprint - Small Outline Packages - Small Outline Packages - MiniSO-8 package_2026
click to zoom
3D Models
TS488IST - STMicroelectronics - 3D model - Small Outline Packages - MiniSO-8 package_2026
click to zoom

TS488IST Details

  • Manufacturer Part Number:

    TS488IST

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    MINI,SOP-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Bandwidth-Nom:

    20 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    0.13 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.7 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.2 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    3 mm

TS488IST Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2352, which includes guidelines for component placement, routing, and grounding to minimize EMI and ensure reliable operation.
  • The TS488IST can be configured for I2C or SPI communication by setting the appropriate pins (e.g., SCL/SDA for I2C or SCK/MOSI/MISO for SPI) and using the correct protocol-specific commands. Refer to the datasheet and application notes for detailed configuration and protocol information.
  • The maximum operating frequency of the TS488IST is 50 MHz. As the operating frequency increases, power consumption also increases. However, the TS488IST has a low-power mode that can be enabled to reduce power consumption when the device is not actively transmitting or receiving data.
  • The TS488IST provides error detection and correction mechanisms, such as parity and checksum, to ensure data integrity. In case of errors, the device can be configured to generate interrupts or flags to notify the system. The application software should implement error handling routines to recover from errors and exceptions.
  • The TS488IST is rated for operation in a temperature range of -40°C to 125°C and humidity up to 60%. However, it's essential to follow proper PCB design and assembly guidelines, as well as provide adequate thermal management and protection, to ensure reliable operation in harsh environmental conditions.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TS488IST Overview

Use the download button to access the TS488IST schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS488, or try a keyword search, such as Audio/Video Amplifiers
