Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-speed PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm impedance traces for the signal lines.
The TS5A23157DGSRE4 requires a specific power sequencing order to ensure proper operation. The VCC pin should be powered up before the VCCA pin, and the VCCA pin should be powered down before the VCC pin. A power sequencing circuit or a dedicated power management IC can be used to ensure the correct power sequencing.
The TS5A23157DGSRE4 is specified to operate up to 400 MHz, but the actual operating frequency may be limited by the system design, PCB layout, and signal integrity. It's recommended to perform signal integrity analysis and simulation to ensure the device operates within its specified frequency range.
The TS5A23157DGSRE4 has a maximum junction temperature of 150°C. To ensure reliable operation, it's recommended to provide adequate heat sinking, such as a thermal pad or a heat sink, and to keep the device away from heat sources. The thermal resistance of the package should also be considered in the thermal management design.
The TS5A23157DGSRE4 requires a termination scheme to ensure signal integrity and minimize reflections. A series termination resistor (Rs) of 50-75 ohms is recommended, and the value of Rs should be chosen based on the system impedance and signal frequency.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5A23157DGSRE4 Overview

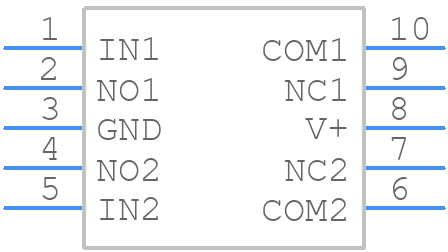

Use the download button to access the TS5A23157DGSRE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5A2,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
