Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as minimizing trace lengths, using a solid ground plane, and placing decoupling capacitors close to the device. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The TS5A23157DGSTG4 requires a 1.8V to 5.5V power supply. Ensure that the power supply is clean and well-regulated. Decouple the device with a 0.1uF ceramic capacitor and a 1uF electrolytic capacitor in parallel, placed as close as possible to the device. Additionally, use a 10uF bulk capacitor on the power rail to filter out noise.
The TS5A23157DGSTG4 is a 2:1 multiplexer/demultiplexer switch, and its data rate is limited by the signal bandwidth and the capacitance of the load. The device can support data rates up to 100 Mbps, but the actual data rate will depend on the specific application and the signal integrity of the system.
The TS5A23157DGSTG4 has built-in ESD protection, but it's still essential to follow proper ESD handling procedures when working with the device. Use an ESD wrist strap or mat, and ensure that the device is handled in an ESD-protected environment. Avoid touching the device pins or exposing them to static electricity.
The TS5A23157DGSTG4 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may be affected at high temperatures. Ensure that the device is operated within its specified temperature range, and consider using thermal management techniques, such as heat sinks or thermal interfaces, to maintain a safe operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5A23157DGSTG4 Overview

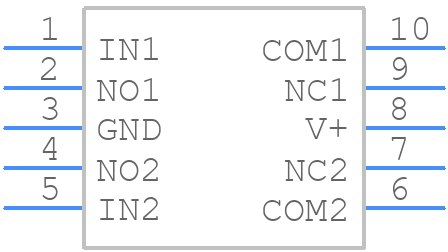

Use the download button to access the TS5A23157DGSTG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5A2,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
