A good PCB layout for the TS5A3359DCUT involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help reduce EMI.
The TS5A3359DCUT requires a single 1.8V to 5.5V power supply. It's recommended to power the device with a clean, low-noise power supply, and to sequence the power-on in the following order: VCC, then VIN. A 10uF capacitor on the VCC pin and a 1uF capacitor on the VIN pin are recommended to filter out noise.
The TS5A3359DCUT can achieve data rates up to 100 Mbps. However, the actual data rate achieved will depend on the system design, PCB layout, and signal integrity. The device's bandwidth is limited by the internal capacitance and the output impedance, which can affect the signal rise and fall times.
The TS5A3359DCUT has a maximum junction temperature of 150°C. To ensure proper thermal management, it's recommended to use a heat sink or a thermal pad, and to keep the device away from heat sources. The device's thermal resistance (θJA) is 45°C/W, and the maximum power dissipation is 250mW.
The TS5A3359DCUT has built-in ESD protection diodes on the input pins, which can withstand up to ±2kV of ESD. To prevent latch-up, it's recommended to use a series resistor on the input pins, and to ensure that the input signals are within the specified voltage range.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5A3359DCUT Overview

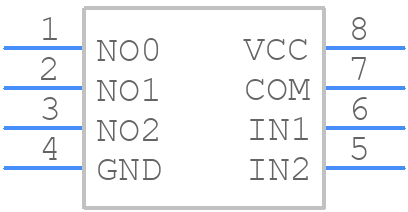

Use the download button to access the TS5A3359DCUT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5A3,
or try a keyword search, such as Multiplexers or Switches
