Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good PCB design practices, such as keeping the signal traces short, using a solid ground plane, and minimizing vias and layer changes. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The TS5USBC402IYFPT has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use an ESD wrist strap or mat, and ensure that the device is handled in an ESD-controlled environment. Additionally, consider adding external ESD protection devices, such as TVS diodes, to further protect the device.
The TS5USBC402IYFPT supports USB 2.0 high-speed data transfer rates, which are limited to 3 meters (10 feet) of cable length. However, the actual cable length may vary depending on the cable quality, signal integrity, and system design. It's recommended to use high-quality, shielded cables and to follow proper cable routing and termination practices.
The TS5USBC402IYFPT is a USB 2.0 device, and it's not compatible with USB 3.0 or USB 3.2 systems. If you need to support higher speeds, consider using a USB 3.0 or USB 3.2-compliant device, such as the TUSB802 or TUSB804 from Texas Instruments.
The TS5USBC402IYFPT has a low-power mode that can be enabled by pulling the EN pin low. Additionally, you can reduce power consumption by minimizing the output current, using a lower supply voltage, and optimizing the system design for low power. Refer to the datasheet for more information on power management and low-power operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5USBC402IYFPT Overview

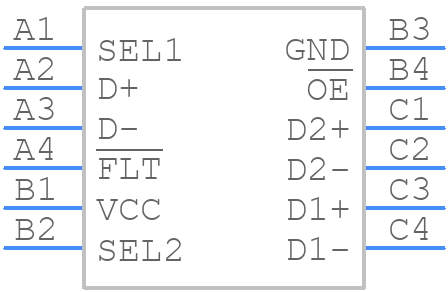

Use the download button to access the TS5USBC402IYFPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5US,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
