Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To handle high-speed signals, it's essential to follow proper signal integrity design practices, such as using differential pairs, controlling impedance, and minimizing signal reflections. Texas Instruments recommends using the IBIS model and signal integrity analysis tools to simulate and optimize the design.
The TS5USBC402YFPT has a thermal pad that must be connected to a thermal plane on the PCB to dissipate heat. Ensure that the thermal plane is connected to a heat sink or a metal layer with good thermal conductivity. Also, follow the recommended thermal management guidelines in the datasheet to prevent overheating.
The TS5USBC402YFPT can be configured for different USB speeds and modes using the I2C interface. Refer to the datasheet and the application note SLVAUH6 for detailed information on configuring the device for USB 2.0, USB 3.2 Gen 1, and USB 3.2 Gen 2 modes.
The TS5USBC402YFPT has built-in ESD protection, but it's still essential to follow proper ESD handling and prevention practices during manufacturing and assembly. Additionally, ensure that the device is powered up and down correctly to prevent latch-up. Refer to the datasheet and the application note SLVAUH5 for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5USBC402YFPT Overview

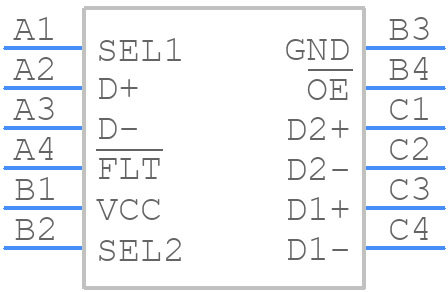

Use the download button to access the TS5USBC402YFPT schematic symbol, PCB footprint, and 3D model.
