- Stock & Prices $ Price & Stock for TS5USBC410IYFFT
- Part Number TS5USBC410IYFFT
- Manufacturer Texas Instruments
- Pin Count 12
- Part Category Integrated Circuit
- Package Category BGA
- Footprint Name BGA - YFF0012-C01-
- Released Date Aug 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TS5USBC410IYFFT Details
-
Manufacturer Part Number:
TS5USBC410IYFFT
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Date Of Intro:
2018-03-27
-
Manufacturer:
Texas Instruments
-
YTEOL:
15
TS5USBC410IYFFT Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the application note SLVAUH7, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize signal integrity issues.
-
The TS5USBC410IYFFT has built-in fault detection and hot-swapping capabilities. Engineers can use the device's fault detection pins (FAULT and FLTOUT) to detect overcurrent, overvoltage, and undervoltage conditions. Additionally, the device supports hot-swapping through its automatic switch-on and switch-off features.
-
The TS5USBC410IYFFT has a high-power rating, and thermal management is crucial to ensure reliable operation. Engineers should consider using thermal vias, heat sinks, and thermal pads to dissipate heat. The device's junction-to-ambient thermal resistance (RθJA) is 30°C/W, and the recommended operating temperature range is -40°C to 125°C.
-
The TS5USBC410IYFFT is a highly configurable device that can be used in various USB-C applications, including USB-C charging, USB-C data transfer, and USB-C power delivery. Engineers can use the device's I2C interface to configure the device for specific applications and customize its behavior using the TI-provided software development kit (SDK).
-
The TS5USBC410IYFFT has built-in electrostatic discharge (ESD) protection and surge immunity features to protect against voltage surges and ESD events. The device meets the IEC 61000-4-2 and IEC 61000-4-5 standards for ESD and surge immunity, respectively.
Trust Checks
Community Provided
System Verified
Community Approved
TS5USBC410IYFFT Overview

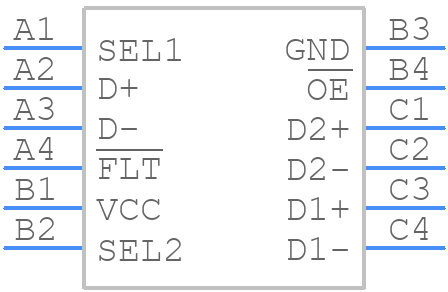

Use the download button to access the TS5USBC410IYFFT schematic symbol, PCB footprint, and 3D model.
