Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm impedance-controlled traces for the USB signals.
The TS5USBC410YFFR requires a specific power sequencing and voltage regulation scheme. It's recommended to use a dedicated voltage regulator for the VCC pin and ensure that the VCC pin is powered up before the VBUS pin. Additionally, the device requires a 1.5V to 3.6V voltage range for the VCC pin.
The TS5USBC410YFFR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat dissipation through a heat sink or thermal pad, especially in high-current or high-temperature applications.
The TS5USBC410YFFR can be configured for different USB modes using the MODE pin. For example, tying the MODE pin to VCC configures the device as a USB host, while tying it to GND configures it as a USB device. Consult the datasheet for specific configuration details.
The TS5USBC410YFFR has built-in ESD protection and surge immunity features, including ±8kV IEC 61000-4-2 contact discharge and ±15kV IEC 61000-4-2 air discharge. However, it's still recommended to follow proper ESD handling and protection procedures during device handling and PCB assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5USBC410YFFR Overview

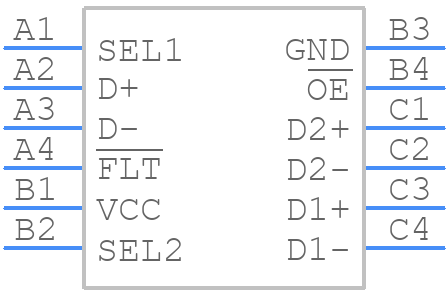

Use the download button to access the TS5USBC410YFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5US,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
