Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good high-speed PCB design practices, such as using a solid ground plane, minimizing trace lengths, and using 50-ohm impedance-controlled traces for the USB signals.
To minimize jitter and ensure signal integrity, use a low-jitter clock source, keep the clock signal path as short as possible, and use a clock buffer or repeater if necessary. Additionally, use a high-quality USB connector and cable, and ensure that the PCB layout is optimized for signal integrity.
The TS5USBC412IYFFR supports USB 2.0, which has a maximum cable length of 3 meters (10 feet). However, the actual cable length may be limited by the specific application, signal quality, and noise tolerance.
The TS5USBC412IYFFR requires a 1.8-V to 3.3-V power supply. It's essential to use a low-dropout regulator (LDO) or a switching regulator to ensure a stable and noise-free power supply. Additionally, follow proper power management practices, such as using decoupling capacitors and minimizing power supply noise.
The TS5USBC412IYFFR has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate thermal management, such as using a heat sink, thermal vias, or a thermally conductive PCB material. Additionally, follow proper thermal design practices, such as minimizing thermal resistance and using thermal interface materials.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5USBC412IYFFR Overview

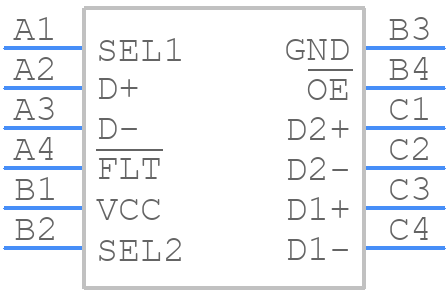

Use the download button to access the TS5USBC412IYFFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5US,
or try a keyword search, such as Multiplexers or Switches
