Texas Instruments provides a recommended PCB layout in the application note SLVA883, which includes guidelines for signal routing, decoupling, and thermal management to ensure optimal performance and signal integrity.
To minimize jitter and ensure signal integrity, it's essential to follow the recommended PCB layout, use high-quality components, and implement proper signal routing and termination. Additionally, consider using a signal integrity analysis tool to simulate and optimize your design.
The TS5USBC412YFFT has an operating temperature range of -40°C to 85°C. While it can operate within this range, its performance may degrade at higher temperatures. It's essential to ensure proper thermal management and heat dissipation to maintain optimal performance.
Yes, the TS5USBC412YFFT can be used in a USB 2.0 application, but it will operate at a reduced speed. The device will automatically detect the USB 2.0 signal and adjust its performance accordingly. However, the device's power consumption and signal integrity may be affected, so it's essential to consult the datasheet and application notes for specific guidance.
To troubleshoot common issues with the TS5USBC412YFFT, start by verifying the PCB layout and signal routing, checking for signal integrity and jitter, and ensuring proper power supply and decoupling. Use oscilloscopes and signal analysis tools to identify the root cause of the issue. Consult the datasheet, application notes, and Texas Instruments' support resources for additional guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TS5USBC412YFFT Overview

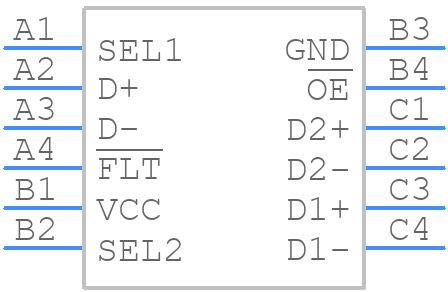

Use the download button to access the TS5USBC412YFFT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TS5US,
or try a keyword search, such as Multiplexers or Switches
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
