TS5V522CPWR - Texas Instruments

Description: 5V, 5-BITS VIDEO EXCHANGE SWITCH FOR DUAL VGA SOURCE TO SINK

Download TS5V522CPWR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

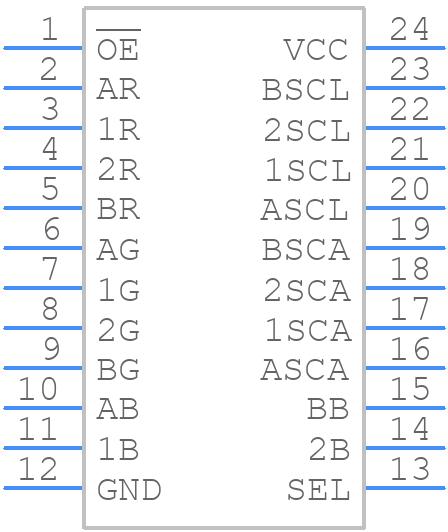

TS5V522CPWR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TS5V522CPWR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP -24
click to zoom
3D Models
TS5V522CPWR - Texas Instruments - 3D model - Small Outline Packages - TSSOP -24
click to zoom

TS5V522CPWR Details

  • Manufacturer Part Number:

    TS5V522CPWR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Pin Count:

    24

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    Configuration : Crosspoint/exchange

  • Analog IC - Other Type:

    AUDIO/VIDEO SWITCH

  • Bandwidth-Nom:

    380 MHz

  • Input Voltage-Max:

    5.5 V

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e4

  • Length:

    7.8 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    5

  • Number of Functions:

    2

  • Number of Terminals:

    24

  • Off-state Isolation-Nom:

    44 dB

  • On-state Resistance-Max (Ron):

    7 Ω

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    SEPARATE OUTPUT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max (Isup):

    0.003 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Switch-off Time-Max:

    6 ns

  • Switch-on Time-Max:

    6.6 ns

  • Switching:

    BREAK-BEFORE-MAKE

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TS5V522CPWR Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency PCB design, such as using a solid ground plane, minimizing trace lengths, and using bypass capacitors to reduce noise and ringing.
  • The TS5V522CPWR has a specific power-up and power-down sequence that must be followed to ensure proper operation. The datasheet provides a recommended power-up and power-down sequence, which typically involves ramping up the input voltage slowly and ensuring that the output voltage is stable before enabling the device.
  • The TS5V522CPWR has an operating temperature range of -40°C to 125°C, but it's recommended to derate the device's performance at higher temperatures to ensure reliability and prevent thermal shutdown.
  • Troubleshooting issues with the TS5V522CPWR typically involves using oscilloscopes and other test equipment to measure the input and output voltages, as well as the device's internal signals. Texas Instruments also provides application notes and technical support resources to help engineers troubleshoot common issues.
  • The TS5V522CPWR is a commercial-grade device, but it can be used in high-reliability or safety-critical applications with proper design and testing. Engineers should follow Texas Instruments' guidelines for using the device in such applications, and ensure that the device is properly qualified and tested for the specific use case.
