TSA1203IF - STMicroelectronics

Description: Dual-channel 12-bit 40Msps 215mW A/D converter,2.5 V/3.3 V capability,2.5 V -40° C to +85° C

Download TSA1203IF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

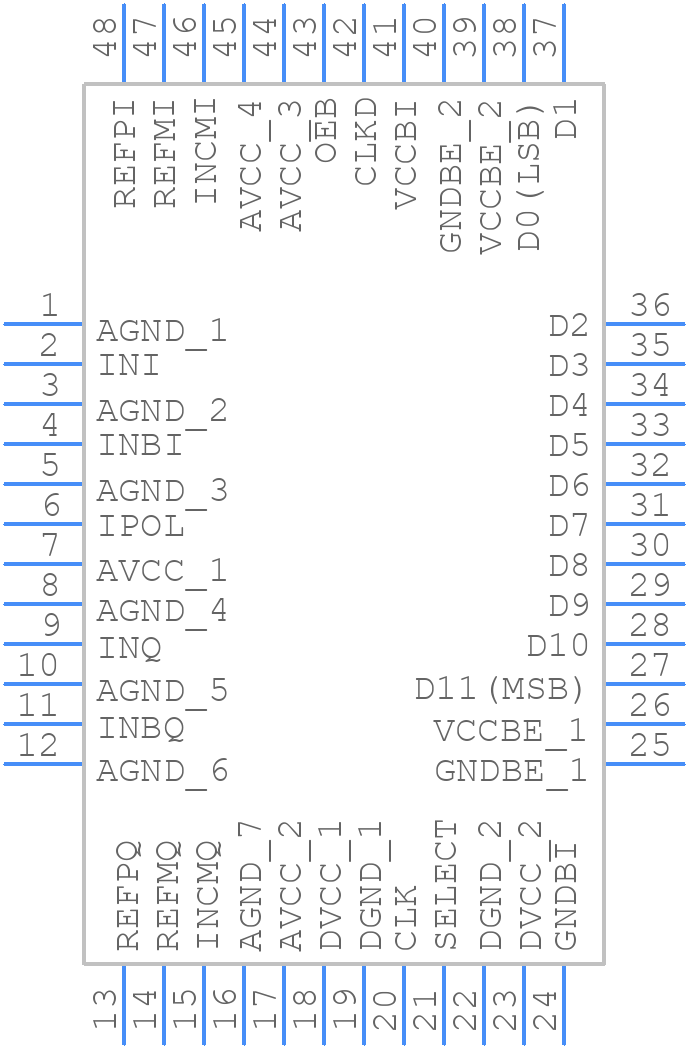

TSA1203IF - STMicroelectronics - PCB symbol
click to zoom
PCB Footprints
TSA1203IF - STMicroelectronics PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP48
click to zoom
3D Models
TSA1203IF - STMicroelectronics - 3D model - Quad Flat Packages - TQFP48
click to zoom

TSA1203IF Details

  • Manufacturer Part Number:

    TSA1203IF

  • Brand Name:

    STMicroelectronics

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFP

  • Package Description:

    TQFP-48

  • Pin Count:

    48

  • HTS Code:

    8542.39.00.30

  • Manufacturer:

    STMicroelectronics

  • YTEOL:

    0

  • Analog Input Voltage-Max:

    2.8 V

  • Analog Input Voltage-Min:

    1.1 V

  • Converter Type:

    ADC, PROPRIETARY METHOD

  • JESD-30 Code:

    S-XQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Linearity Error-Max (EL):

    0.0244%

  • Moisture Sensitivity Level:

    3

  • Number of Analog In Channels:

    2

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Bit Code:

    BINARY

  • Output Format:

    PARALLEL, WORD

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP48,.35SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Sample Rate:

    40 MHz

  • Sample and Hold / Track and Hold:

    SAMPLE

  • Seated Height-Max:

    1.6 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

TSA1203IF Frequently Asked Questions (FAQs)

  • STMicroelectronics provides a recommended PCB layout in the application note AN2863, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
  • The selection of input and output capacitors depends on the specific application requirements, such as voltage rating, capacitance value, and ESR. STMicroelectronics recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
  • The TSA1203IF has an operating temperature range of -40°C to +125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's essential to ensure proper thermal management and heat dissipation to prevent overheating and ensure reliable operation.
  • Common issues with the TSA1203IF can be troubleshooted by checking the PCB layout, component selection, and soldering quality. Ensure that the input and output capacitors are properly selected and placed, and that the PCB layout follows the recommended guidelines. Also, check for any signs of overheating, and verify that the input voltage and current are within the specified limits.
  • Yes, the TSA1203IF is suitable for high-reliability and automotive applications, as it meets the requirements of the AEC-Q100 standard for automotive-grade devices. However, it's essential to follow the recommended design and manufacturing guidelines to ensure the device meets the specific application requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TSA1203IF Overview

Use the download button to access the TSA1203IF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TSA12, or try a keyword search, such as Analog to Digital Converters
